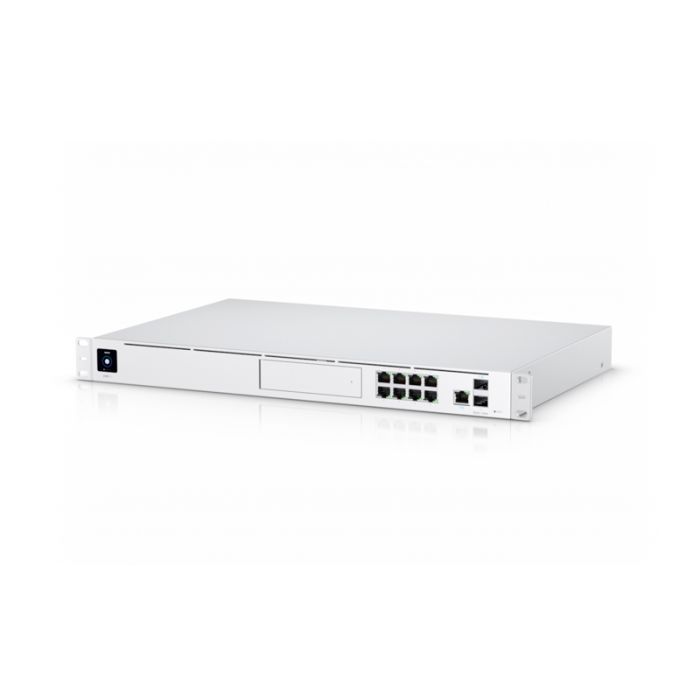

UDM-Pro UniFi Dream Machine Pro Network Appliance - 10G SFP+ Gateway and NVR
The UDM-Pro is a UniFi Dream Machine Pro all-in-one network appliance combining an advanced security gateway, integrated switch, UniFi Network console, and NVR storage bay. Its specification includes dual WAN capability with one 10G SFP+ WAN port and one Gigabit RJ45 WAN port, plus one 10G SFP+ LAN port and eight Gigabit RJ45 LAN ports.
Designed for scalable office, retail, and hospitality networks, it centralises routing, switching, security management, and UniFi application control in a 1U rackmount form. UniFi Protect can run on the appliance when an HDD is installed, helping sites keep camera recordings locally accessible rather than relying on a separate third-party server.
Key Features
- Consolidates gateway, switch, UniFi Network console, and NVR roles in one appliance.
- Dual WAN design supports resilient internet connectivity planning.
- 10G SFP+ LAN and WAN interfaces provide high-capacity uplink options.
- Integrated UniFi management keeps network devices visible from a central console.
- Rackmount form and HDD bay support structured network and camera deployments.
- Catalogue Family:
- NVR
- Dimensions:
- 442.4 x 43.7 x 285.6 mm
- Weight:
- 3.90 kg; 3.99 kg with brackets
- Networking Interfaces:
- (8) 10/100/1000 RJ45 LAN ports; (1) 10/100/1000 RJ45 WAN port; (1) 1/10G SFP+ LAN port; (1) 1/10G SFP+ WAN port
- Management Interface:
- Ethernet In-Band / Bluetooth BLE
- Ids/Ips Throughput:
- 3.5 Gbps measured with iPerf3
- Processor:
- Quad ARM Cortex-A57 core at 1.7 GHz
- System Memory:
- 4 GB DDR4
- On-Board Flash Storage:
- 16 GB eMMC
- HDD Bay:
- 3.5-inch HDD bay with 2.5-inch HDD support
- Max. Power Consumption:
- 33W
- Power Method:
- Universal AC input 100-240VAC 50/60 Hz; RPS DC input
- Power Supply:
- Internal 50W/12V
- Operating Temperature:
- -10 to 40°C (14 to 104°F)
- Operating Humidity:
- 5 to 95% noncondensing
- Certifications:
- CE, FCC, IC
- Product Type:
- NVR
