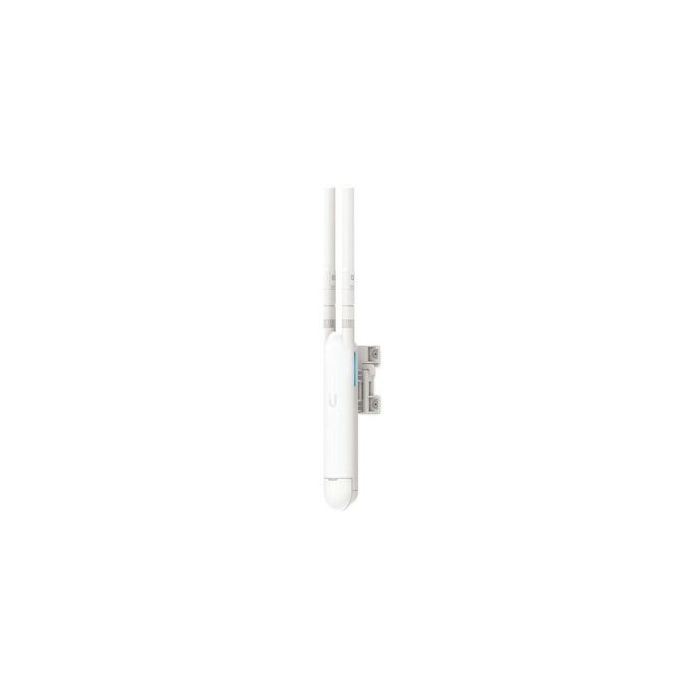

NHU-UAP-AC-M Ubiquiti UniFi AC Mesh Outdoor Access Point
The NHU-UAP-AC-M is a UniFi AC Mesh access point providing simultaneous dual-band 2x2 MIMO wireless coverage for indoor or outdoor deployments. It provides 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz, external dual-band omni antennas and support for 24V passive PoE or 802.3af Alternative A power.
It suits managed UniFi networks where mesh uplink capability, flexible wall or pole mounting and weather-resistant installation are required. The compact form factor and included mounting options make it practical for extending coverage around campuses, outdoor areas, temporary sites and difficult cable paths.
Key Features
- Extends UniFi-managed WiFi coverage indoors or outdoors with mesh-ready deployment options.
- External dual-band antennas support adaptable coverage planning.
- Wall, pole and fast-mount options help installers place the AP where coverage is needed.
- Flexible PoE support makes it easier to match existing switch or injector infrastructure.
- Central UniFi management keeps wireless adoption, monitoring and changes consistent.
- Catalogue Family:
- ACCESSORIES
- Wi-Fi Standard:
- 802.11 a/b/g/n/r/k/v/ac
- MIMO:
- 2x2
- 2.4 GHz Radio Rate:
- 300 Mbps
- 5 GHz Radio Rate:
- 867 Mbps
- Networking Interface:
- (1) 10/100/1000 Ethernet port
- Power Method:
- 24V passive PoE or 802.3af Alternative A
- Maximum Power Consumption:
- 8.5 W
- Antennas:
- (2) external dual-band omni antennas
- Mounting:
- Wall, pole or fast-mount kits included
- Dimensions:
- 353 x 46 x 34.4 mm
- Weight:
- 152 g with antennas
- Operating Temperature:
- -30 to 70 C
- Product Type:
- Accessories
