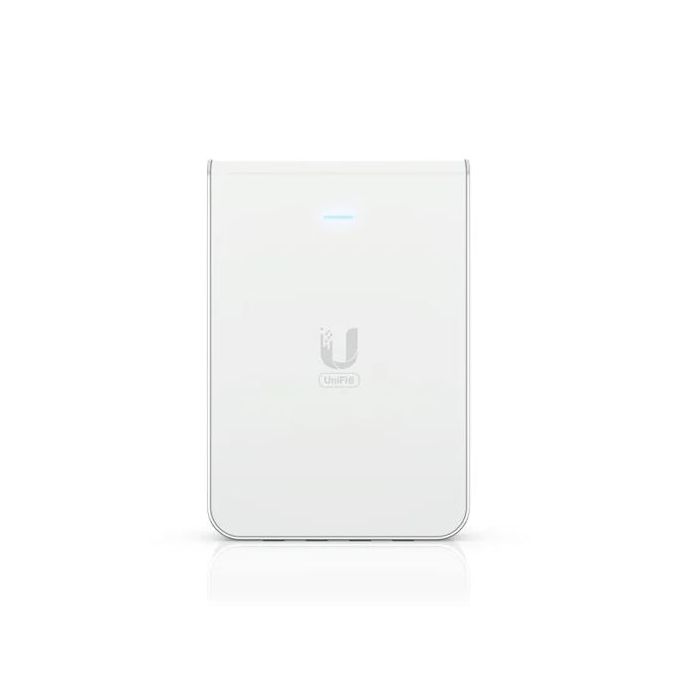

U6-IW Ubiquiti UniFi WiFi 6 In-Wall Access Point
The U6-IW is a Ubiquiti UniFi WiFi 6 in-wall access point with one Gigabit data-in port and four Gigabit data-out ports. It supports 2.4 GHz 2 x 2 MU-MIMO, 5 GHz 4 x 4 MU-MIMO and stated throughput rates of 573.5 Mbps and 4.8 Gbps respectively.
Designed for wall-mounted wireless extension with wired device connectivity, it supports Ethernet and Bluetooth management, PoE input and PoE output when powered by PoE+. The compact polycarbonate and aluminium enclosure suits rooms where WiFi and local Ethernet ports are needed together.
Key Features
- In-wall form factor delivers WiFi 6 coverage without a ceiling-mounted access point.
- Four Gigabit data-out ports support local wired devices in the same room.
- PoE output capability can power a downstream device when PoE+ is supplied.
- Dual-band MU-MIMO design supports modern high-density wireless use.
- Bluetooth management helps simplify adoption and setup workflows.
- Catalogue Family:
- NETWORK SWITCH
- Model:
- U6-IW
- Dimensions:
- 139.6 x 96 x 31.2 mm
- Weight:
- 460 g
- Enclosure Materials:
- Polycarbonate, aluminium
- Networking Interface:
- (1) GbE RJ45 data in; (4) GbE RJ45 data out
- Management Interface:
- Ethernet, Bluetooth
- PoE Interface:
- (1) PoE in, (1) PoE out
- Power Method:
- PoE; PoE+ required for PoE output
- Power Supply:
- UniFi PoE switch or 48 V, 0.5 A PoE adapter optional
- Max. Power Consumption:
- 13.5 W excluding PoE output
- MIMO:
- 2.4 GHz 2 x 2 UL MU-MIMO; 5 GHz 4 x 4 DL/UL MU-MIMO
- Throughput Rate:
- 2.4 GHz 573.5 Mbps; 5 GHz 4.8 Gbps
- Concurrent Clients:
- 300+
- Operating Temperature:
- -30 to 60 C
- Certifications:
- CE, FCC, IC
- Product Type:
- Network Switch
