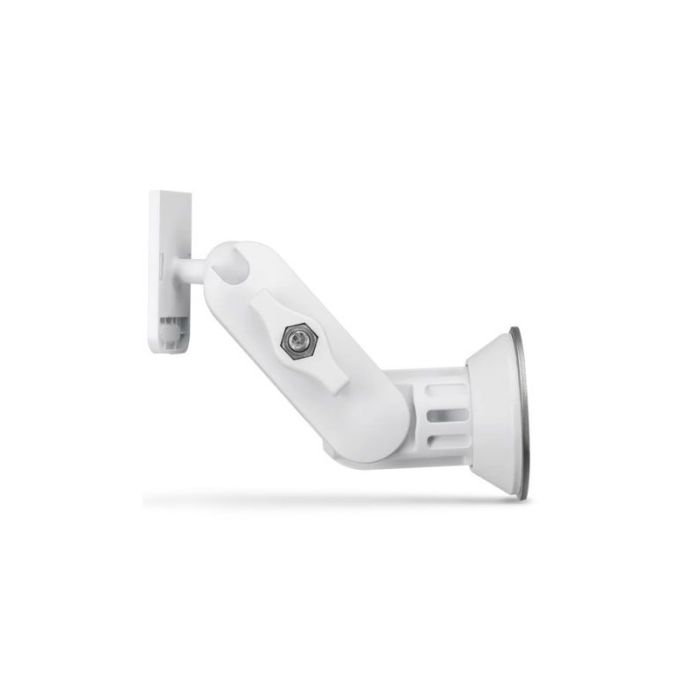

Quick-Mount Ubiquiti Quick Mount - Multi-Device CPE Mount
The Quick-Mount is an adjustable CPE mount for compatible Ubiquiti GigaBeam, LTU Lite, NanoBeam, NanoStation, NanoStation loco and UniFi Building-to-Building Bridge devices.
It features a mount arm, rotation collar, stacking washer and ball-mount hardware for flexible device positioning. With compact 104 x 122 x 81 mm dimensions and a weight of 375 g, it provides a practical mounting solution for wireless CPE installations.
Key Features
- Compatible with selected Ubiquiti GigaBeam, LTU Lite, NanoBeam, NanoStation, NanoStation loco and UniFi Building-to-Building Bridge devices.
- Adjustable arm and rotation collar support precise device alignment.
- Compact dimensions suit space-constrained outdoor CPE mounting locations.
- Ball-mount hardware supports multiple compatible installation configurations.
- Lightweight construction simplifies handling during installation.
- Catalogue Family:
- ACCESSORIES
- Model:
- Quick-Mount
- Product Type:
- Accessories
- Dimensions:
- 104 x 122 x 81 mm
- Weight:
- 375 g
- Supported Product Families:
- GigaBeam, LTU Lite, NanoBeam, NanoStation, NanoStationloco, UniFi Building-to-Building Bridge
- Ball Mount Assembly Support:
- loco5AC, NS-5AC, LTU-Lite
- Universal Ball Mount Support:
- NBE-2AC-13, NBE-M5-16, UBB, GBE
- Universal Ball Mount with Washer Support:
- NBE-5AC-Gen2, NBE-M5-19
