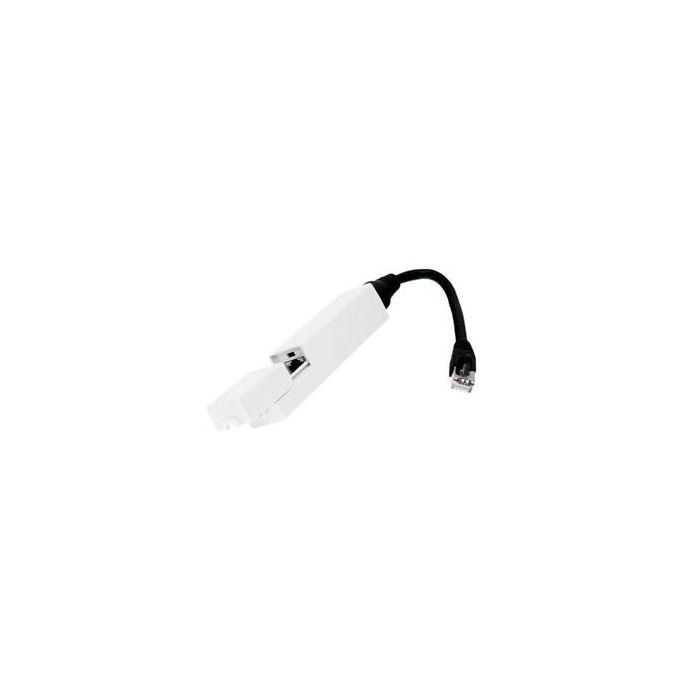

INS-3AF-O-G Ubiquiti Instant 802.3af Outdoor Gigabit PoE Converter
The INS-3AF-O-G is the outdoor version of Ubiquiti's Instant 802.3af Gigabit PoE Converter. It converts compatible Ubiquiti 24 V passive PoE devices for use with 802.3af PoE switching while maintaining Gigabit Ethernet connectivity.
It suits tower, camera and outdoor wireless installations where centralised 802.3af switching and remote power control are useful. The converter provides 24 V passive PoE output, 48 VDC 802.3af input and additional Ethernet ESD/surge protection.
Key Features
- Converts supported 24 V passive PoE outdoor devices for 802.3af switch operation.
- Gigabit Ethernet support helps preserve wired throughput for connected devices.
- Outdoor version suits deployments around wireless and video equipment.
- Remote power control becomes easier when devices are fed from an 802.3af switch.
- Built-in Ethernet isolation helps reduce exposure to ESD and surge events.
- Catalogue Family:
- POE SWITCHES
- Model:
- INS-3AF-O-G
- Version:
- Outdoor
- Dimensions:
- Diameter 30.2 x 166 mm; with RJ45 cable diameter 30.2 x 366.6 mm
- Weight:
- 90 g
- PoE In:
- (1) Gigabit RJ45 port, 802.3af
- PoE Out:
- (1) Gigabit Ethernet cable, 24 V passive
- Operating Temperature:
- -30 to 70 C
- Power Input:
- 48 VDC, 0.5 A, 802.3af
- Max. Power Output:
- 24 VDC, 0.5 A
- Power Method:
- 24 V passive PoE, pairs 4,5+ and 7,8 return
- Ethernet Esd/Surge Protection:
- +/-15 kV
- Product Type:
- PoE Switch
