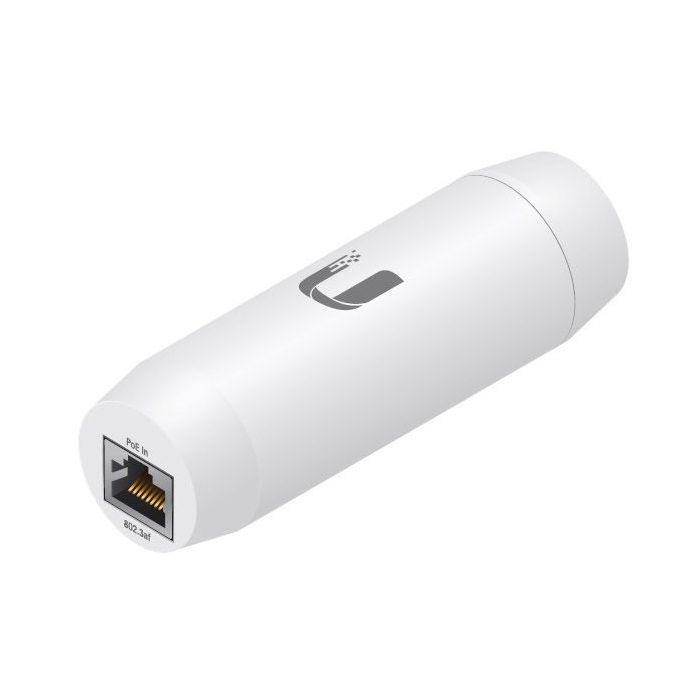

INS-3AF-I-G Ubiquiti Instant 802.3af Indoor Gigabit PoE Converter
The INS-3AF-I-G is the indoor version of Ubiquiti's Instant 802.3af Gigabit PoE Converter. It converts compatible Ubiquiti 24 V passive PoE devices for use with 802.3af PoE switching while maintaining Gigabit Ethernet connectivity.
It suits network sites where remote power control and centralised PoE switching are preferred over separate passive injectors. The converter provides 24 V passive PoE output, 48 VDC 802.3af input and additional Ethernet ESD/surge protection.
Key Features
- Converts supported 24 V passive PoE devices for 802.3af switch operation.
- Gigabit Ethernet support helps preserve wired throughput for connected devices.
- Indoor inline format keeps the conversion hardware compact and simple.
- Remote power control becomes easier when devices are fed from an 802.3af switch.
- Built-in Ethernet isolation helps reduce exposure to ESD and surge events.
- Catalogue Family:
- POE SWITCHES
- Model:
- INS-3AF-I-G
- Version:
- Indoor
- Dimensions:
- Diameter 30.26 x 95.5 mm
- Weight:
- 50 g
- PoE In:
- (1) Gigabit RJ45 port, 802.3af
- PoE Out:
- (1) Gigabit RJ45 port, 24 V passive
- Operating Temperature:
- 0 to 70 C
- Power Input:
- 48 VDC, 0.5 A, 802.3af
- Max. Power Output:
- 24 VDC, 0.5 A
- Power Method:
- 24 V passive PoE, pairs 4,5+ and 7,8 return
- Ethernet Esd/Surge Protection:
- +/-15 kV
- Product Type:
- PoE Switch
