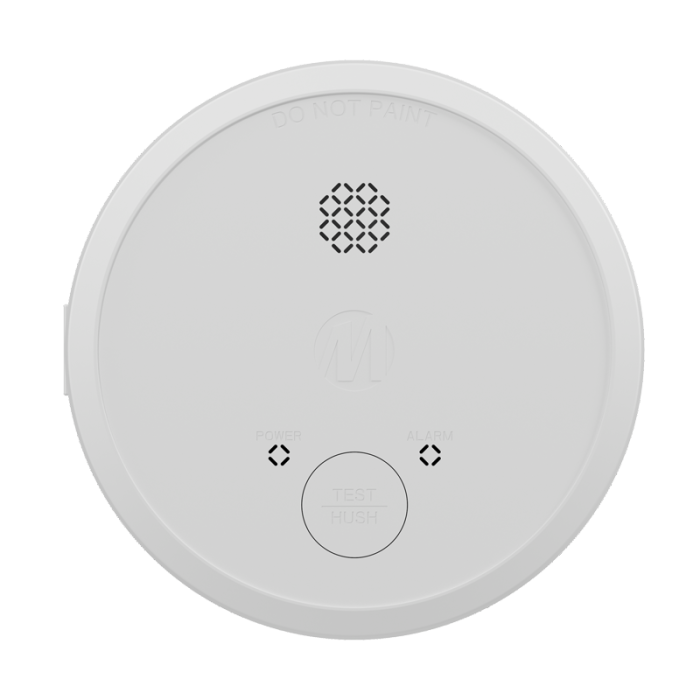

MTLDET-SMK/AC/1 MATELEC Photoelectric Smoke Detector - 240V Wired Interconnect 1 Year Backup
The MATELEC DET-SMK/AC/1 is a Type A photoelectric smoke detector with 240V wired interconnect and a 1 year alkaline backup battery. Hardwired smoke alarm supporting interconnection of up to 24 alarms. Features separate Hush/Test buttons, LED status indicators, and backup battery support.
It is suitable for wall or ceiling-mounted smoke detection applications. Features an 85 dB alarm output and supports compliance standards where applicable.
Key Features
- Hardwired interconnection supports networks of up to 24 alarms.
- Photoelectric sensing with dual spectrum design helps reduce nuisance alarming.
- Separate hush/test button gives users a clear control point for routine checks.
- Hinged detachable base and recessed cabling support cleaner installation work.
- Backup battery and warning features help maintain practical alarm readiness.
- Catalogue Family:
- ALARM SENSOR
- Product Type:
- Alarm Sensor
- Power:
- 240V with 1 year alkaline backup battery
- Interconnection:
- Hardwired interconnection for up to 24 alarms
- Sound Level Output:
- 85 dB at 3 m
- Wireless Frequency:
- 433.42 MHz
- Temperature Range:
- 0-40 deg C
- Humidity Range:
- 5-93%
- Dimensions:
- 133 mm diameter x 49 mm high
- Mounting:
- Wall or ceiling mounting
- Conforms to:
- AS3786:2023, AS3786:2014 and ISO 12239:2021
