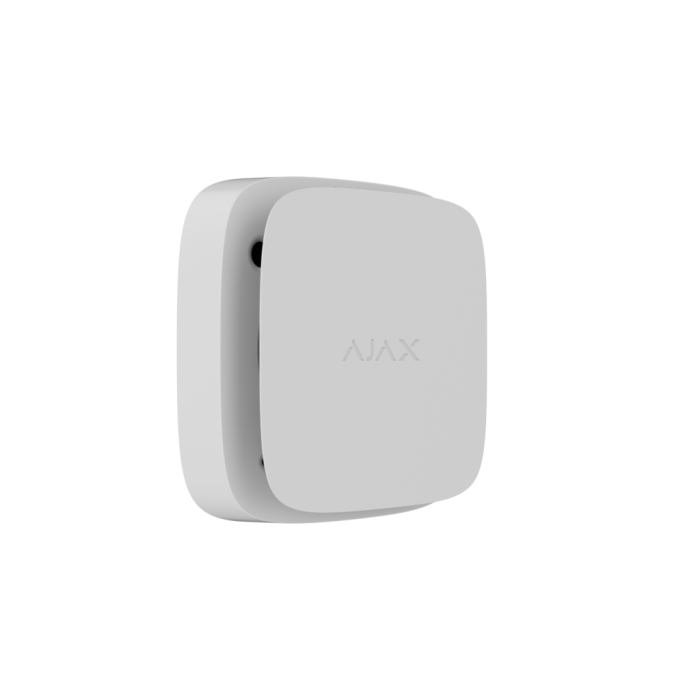

AJAFP2ACPW Fire Protect 2 AC Heat Smoke Jeweller Fire Detector - White
The AJAFP2ACPW Fire Protect 2 AC (Heat/Smoke) Jeweller is a white mains-powered wireless fire detector with smoke and heat detection. Its a dual-spectrum optical smoke sensing, Haze Flow 2 filtering, A1R-class thermistors, 110-240 V AC mains power and a sealed CR 2/3 AA backup battery.
It is intended for Ajax fire installations where heat and smoke alarms need system supervision, local audible warning and interconnected detector behaviour. Smart Bracket mounting, WAGO connectors, Jeweller communication and app-based configuration support a cleaner mains-powered installation.
Key Features
- Combines smoke and heat detection in a mains-powered Ajax fire detector.
- Sealed backup battery helps maintain operation during a power outage.
- Interconnected alarm behaviour can activate compatible detectors across the system.
- Self-diagnosis and state reporting help keep maintenance needs visible in the app.
- White housing suits common ceiling-mounted fire detector positions.
- Catalogue Family:
- ALARM SENSOR
- Product Type:
- Alarm Sensor
- Colour:
- White
- Smoke Sensor:
- Dual-spectrum optical sensor with HazeFlow 2 algorithm
- Heat Sensor:
- Two A1R-class thermistors
- Communication Technology:
- Jeweller
- Communication Range:
- Up to 1,700 m
- Compliance References:
- EN 14604:2005/AC:2008, BS 5839 part 6 grade D1, AS 3786:2014, BSI KITEMARK Smoke Alarms KM 797639
- Main Power Supply:
- 110-240 V AC, 50/60 Hz
- Backup Battery:
- 1 x CR 2/3 AA sealed battery
- Operating Temperature:
- 0 deg C to +50 deg C
- Operating Humidity:
- Up to 80%
- Dimensions:
- 122 x 122 x 54 mm
- Weight:
- 315 g
