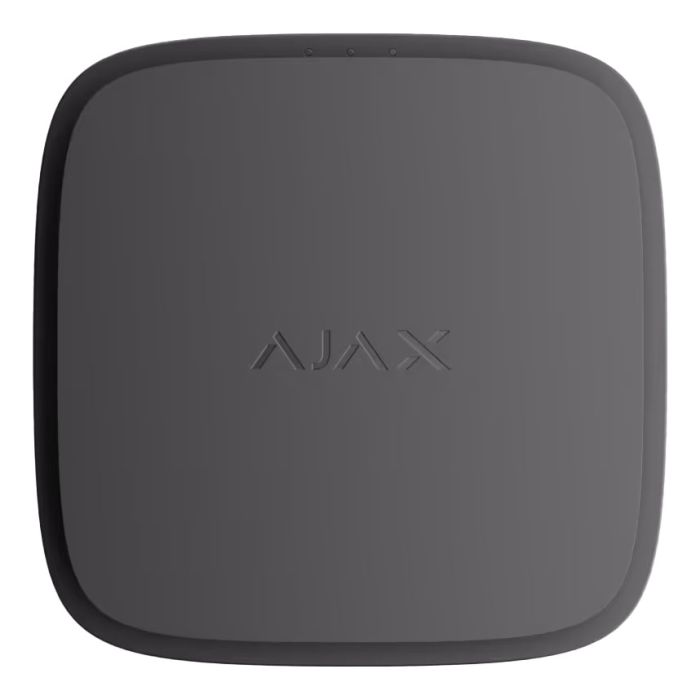

AJAFP2ACPPB Fire Protect 2 AC Heat Smoke CO Jeweller Fire Detector - Black
The AJAFP2ACPPB Fire Protect 2 AC (Heat/Smoke/CO) Jeweller is a black mains-powered wireless fire detector with heat, smoke and carbon monoxide sensors. Its a dual-spectrum optical smoke sensing with Haze Flow 2, A1R-class thermistors, CO level detection, mains power and a sealed backup battery.
It is suited to Ajax fire installations where mains-powered detection needs system supervision and wireless interconnection. Jeweller communication, built-in 85 dB siren, primary and fallback interconnected alarms and app-visible self-diagnosis support reliable warning and maintenance visibility.
Key Features
- Combines smoke, heat and CO detection for broader fire and gas hazard awareness.
- Mains power with sealed backup battery keeps the detector active during outages.
- Interconnected alarm support helps warning spread across compatible fire detectors.
- HazeFlow 2 and the protected smoke chamber help limit false alarms and maintenance burden.
- WAGO connectors and Smart Bracket mounting support a more efficient AC installation.
- Catalogue Family:
- ALARM SENSOR
- Product Type:
- Alarm Sensor
- Colour:
- Black
- Smoke Sensor:
- Dual-spectrum optical sensor with HazeFlow 2 algorithm
- Heat Sensor:
- Two A1R-class thermistors
- Co Sensor:
- Detects CO level for up to 10 years
- Communication Technology:
- Jeweller
- Communication Range:
- Up to 1,700 m
- Compliance References:
- EN 14604:2005/AC:2008, EN 50291-1:2018, BS 5839 part 6 grade D1, AS 3786:2014, BSI KITEMARK Carbon Monoxide Alarms KM 797661, BSI KITEMARK Smoke Alarms KM 797639
- Main Power Supply:
- 110-240 V AC, 50/60 Hz
- Backup Battery:
- 1 x CR 2/3 AA sealed battery
- Operating Temperature:
- 0 deg C to +50 deg C
- Operating Humidity:
- Up to 80%
- Dimensions:
- 122 x 122 x 54 mm
- Weight:
- 318 g
