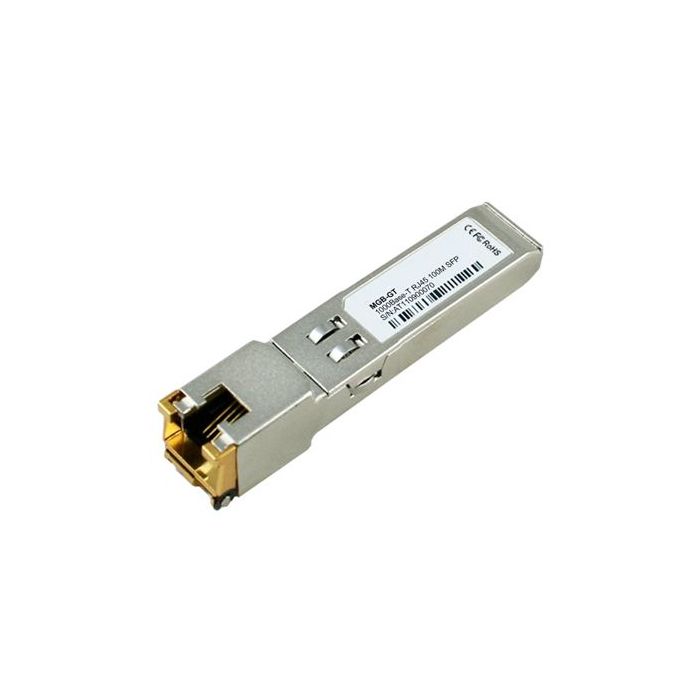

MGB-GT PLANET SFP-Port 1000BASE-T RJ45 Module
The MGB-GT is a PLANET MGB Series SFP-port 1000BASE-T module that provides a copper RJ45 interface for compatible SFP slots. IEEE 802.3ab 1000BASE-T PHY type, RJ45 auto-negotiation, auto-MDI/MDI-X, and a maximum copper distance of 100 m.
It is useful when a switch or media converter with an SFP slot needs a Gigabit copper handoff instead of a fibre transceiver. The hot-pluggable SFP family format supports flexible port use while keeping the final link type matched to the installed cabling.
Key Features
- Converts an SFP slot into a Gigabit RJ45 copper connection where supported.
- Auto-negotiation helps simplify link setup with compatible Ethernet equipment.
- Gives installers a flexible module option when the site requires copper rather than fibre.
- Compact SFP format supports service replacement and port reconfiguration planning.
- Keeps network hardware adaptable across mixed fibre and copper environments.
- Catalogue Family:
- MODEMS & ROUTERS
- Product Type:
- Modems & Routers
- Phy Type:
- IEEE 802.3ab 1000BASE-T
- Connector:
- RJ45, auto-negotiation, auto-MDI/MDI-X
- Maximum Distance:
- 100 m
- Operating Temperature:
- 0 to 60 degrees C
