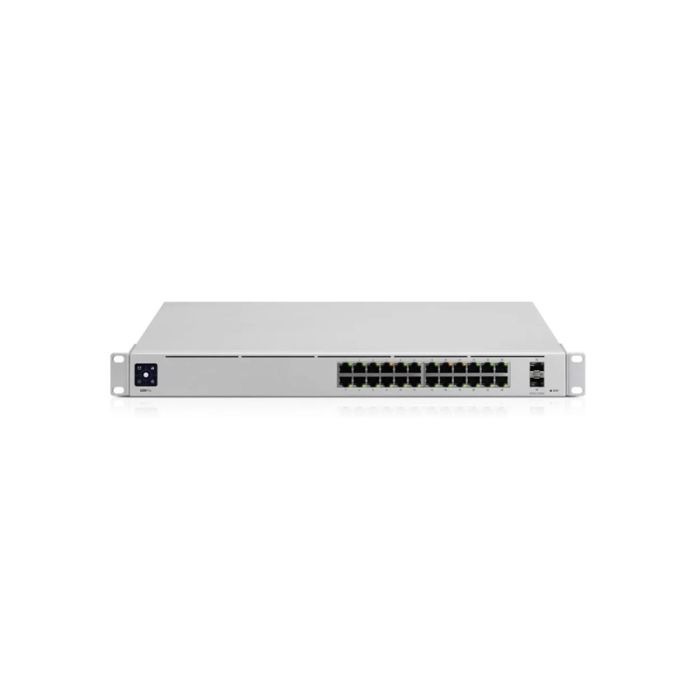

USW-Pro-24 UniFi Switch Pro 24 - 24 GbE Ports and 2 10G SFP+ Ports
The USW-Pro-24 is a UniFi Switch Pro 24 with 24 GbE RJ45 ports and two 1/10G SFP+ ports. It features 44 Gbps total non-blocking throughput, 88 Gbps switching capacity, 65.472 Mpps forwarding rate, an SGCC steel enclosure, and a 1.3-inch touchscreen LCM display.
Supports managed access and aggregation deployments with 24 Gigabit Ethernet ports, two 1/10G SFP+ uplink ports, RPS DC input support, centralised Ethernet in-band management, and a local touchscreen status display.
Key Features
- 24 Gigabit Ethernet RJ45 ports with two 1/10G SFP+ uplink ports.
- 1.3-inch touchscreen LCM display for local status monitoring.
- RPS DC input support for compatible redundant power systems.
- Centralised Ethernet in-band management.
- SGCC steel enclosure for rack-mounted installations.
- Catalogue Family:
- NETWORK SWITCH
- Dimensions:
- 442.4 x 285.4 x 43.7 mm
- Weight:
- 3.5 kg without mounting brackets; 3.6 kg with mounting brackets
- Enclosure Material:
- SGCC steel
- Networking Interface:
- (24) GbE RJ45 ports; (2) 1/10G SFP+ ports
- Management Interface:
- Ethernet In-Band
- Total Non-Blocking Throughput:
- 44 Gbps
- Switching Capacity:
- 88 Gbps
- Forwarding Rate:
- 65.472 Mpps
- Power Method:
- Universal input 100-240V AC 50/60 Hz; USP RPS DC input 11.5V DC 2.61A
- Power Supply:
- AC/DC internal 36W
- Max. Power Consumption:
- 30W
- Lcm Display:
- (1) 1.3-inch touchscreen
- Operating Temperature:
- -5 to 45°C (23 to 113°F)
- Operating Humidity:
- 10 to 90% noncondensing
- Certifications:
- CE, FCC, IC
- Product Type:
- Network Switch
