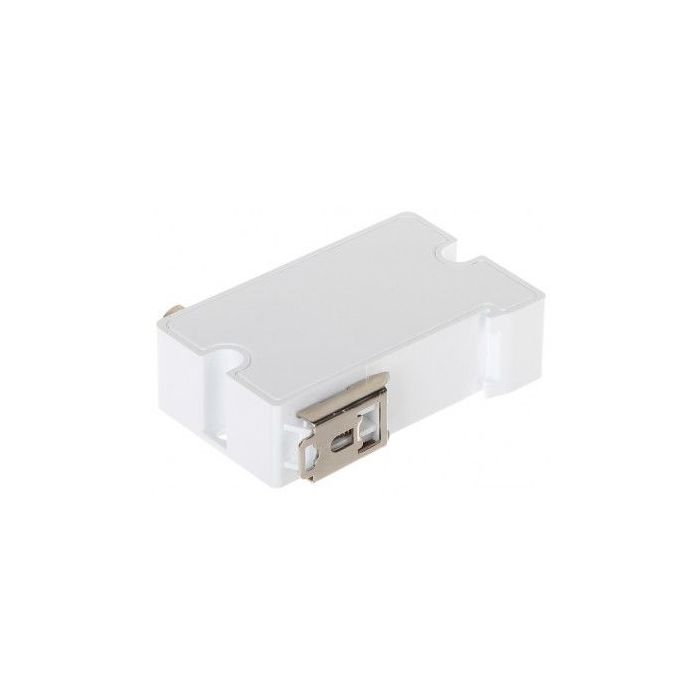

LR1002-1EC Dahua Single Port Long Reach Ethernet Over Coax Receiver
The LR1002-1EC is the receiver side of the Dahua LR1002-1ET/LR1002-1EC single-port long reach Ethernet over coax extender pair. It converts between RJ45 and BNC connections and supports long-range power transmission over coaxial cable when used with the matching transmitter side.
It is suited to CCTV network upgrades where existing RG59 coaxial cable can be reused for Ethernet and PoE transmission. It has 100 Mbps up to 400 m and 10 Mbps up to 1000 m over RG59 under the stated conditions.
Key Features
- Receiver unit enables Ethernet-over-coax conversion with the matching transmitter.
- Supports reuse of RG59 coaxial runs for network camera upgrades.
- PoE standard support helps carry both data and power in suitable paired setups.
- Selectable 100 Mbps and 10 Mbps distance modes support longer cable paths.
- Compact single-port design keeps retrofit installations tidy.
- Catalogue Family:
- CAMERA
- Model:
- LR1002-1EC
- Product Type:
- Camera
- Function Port:
- 1 x RJ45 10/100 Mbps Base-TX; 1 x BNC
- Transmission Bandwidth:
- RG59 coaxial cable: 400 m / 100 Mbps; 1000 m / 10 Mbps
- PoE Protocol:
- IEEE802.3af; IEEE802.3at
- Network Standard:
- IEEE802.3; IEEE802.3u; IEEE802.3x
- Power Consumption:
- < 2 W
- Lightning Protection:
- Common mode 4 kV; differential mode 2 kV
- Operating Temperature:
- -30 deg C to +65 deg C
- Dimensions:
- 79 mm x 52 mm x 23 mm
- Weight:
- 61 g
