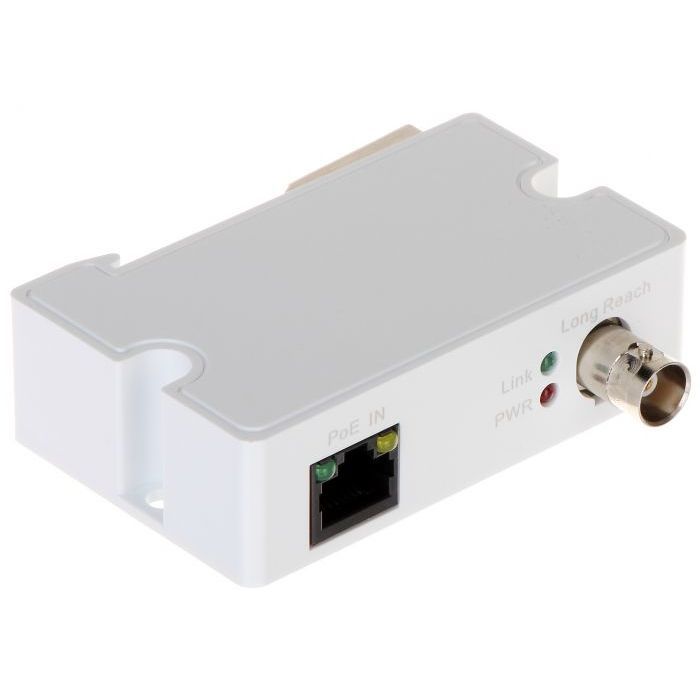

LR1002-1ET Dahua Single Port Long Reach Ethernet Over Coax Transmitter
The LR1002-1ET is the transmitter side of the Dahua single-port long reach Ethernet over coax extender pair. It provides one RJ45 10/100 Mbps port and one BNC coaxial port for RJ45-to-BNC conversion with the matching LR1002-1EC receiver.
This transmitter suits CCTV retrofit work where existing RG59 coaxial cable is retained for Ethernet and PoE transmission. It has IEEE802.3af and IEEE802.3at PoE support and RG59 distances up to 400 m at 100 Mbps or 1000 m at 10 Mbps.
Key Features
- Transmitter unit supports Ethernet-over-coax conversion with the matching receiver.
- Helps extend network camera connectivity over existing coax infrastructure.
- PoE support reduces the need for separate local camera power in suitable systems.
- Compact one-port design is simple to position in retrofit installations.
- Catalogue Family:
- CAMERA
- Model:
- LR1002-1ET
- Product Type:
- Camera
- Function Port:
- 1 x RJ45 10/100 Mbps Base-TX; 1 x BNC
- Transmission Bandwidth:
- RG59 coaxial cable: 400 m / 100 Mbps; 1000 m / 10 Mbps
- PoE Protocol:
- IEEE802.3af; IEEE802.3at
- Network Standard:
- IEEE802.3; IEEE802.3u; IEEE802.3x
- Power Consumption:
- < 2 W
- Lightning Protection:
- Common mode 4 kV; differential mode 2 kV
- Operating Temperature:
- -30 deg C to +65 deg C
- Dimensions:
- 79 mm x 52 mm x 23 mm
- Weight:
- 61 g
