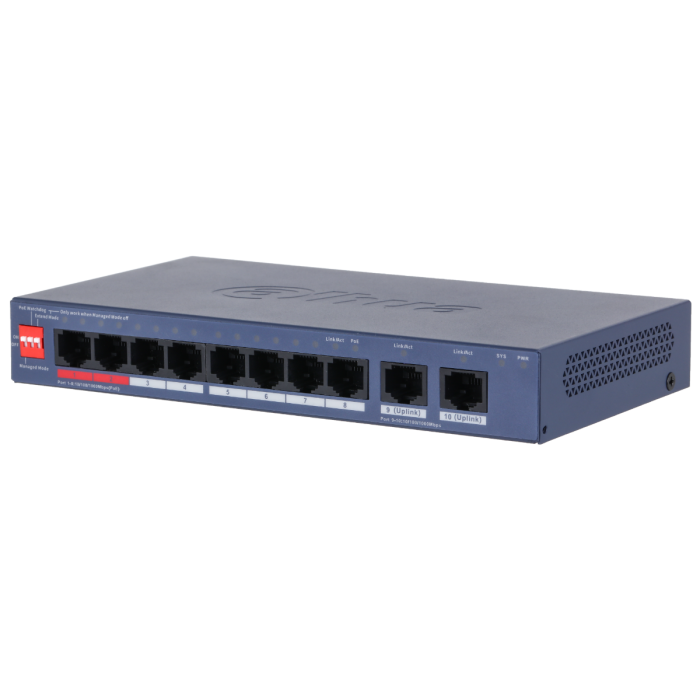

CS4010-8GT-110-V2 10-port Cloud Managed Desktop Gigabit Switch with 8-port PoE
The CS4010-8GT-110-V2 is a Dahua 10-port cloud managed desktop gigabit switch with 8 gigabit PoE ports and 2 gigabit uplink ports. It provides Layer 2 operation, 20 Gbps switching capacity, 110 W total PoE budget and IEEE 802.3af/at/Hi-PoE/802.3bt support.
It supports local web and cloud management through Dahua management tooling, with PoE Watchdog, loop protection, LLDP topology support and long-distance PoE modes. It suits CCTV networks that need gigabit PoE access ports, local or cloud configuration, surge protection and flexible desktop or wall mounting in small to medium installations.
Key Features
- Gigabit PoE access ports support higher-throughput camera networks
- 110 W PoE budget helps power multiple security devices from one switch
- Cloud management and topology visibility support easier remote maintenance
- Loop protection and VLAN functions help keep Layer 2 networks controlled
- DIP-switch modes allow faster changes between managed and PoE functions
- Catalogue Family:
- NETWORK SWITCH
- Model:
- DH-CS4010-8GT-110-V2
- Ports:
- 8 x RJ-45 10/100/1000 Mbps PoE; 2 x RJ-45 gigabit uplink
- Switching Capacity:
- 20 Gbps
- PoE Power:
- Ports 3-8 ≤30 W; ports 1-2 ≤90 W; total ≤110 W
- Power Supply:
- 54 V, 2.22 A external power adapter
- Casing Material:
- Sheet metal
- Installation:
- Desktop mount; wall mount
- Dimensions:
- 184.6 x 103.3 x 27 mm
- Operating Temperature:
- -10°C to +55°C
- Certifications:
- CE
- Product Type:
- Network Switch
