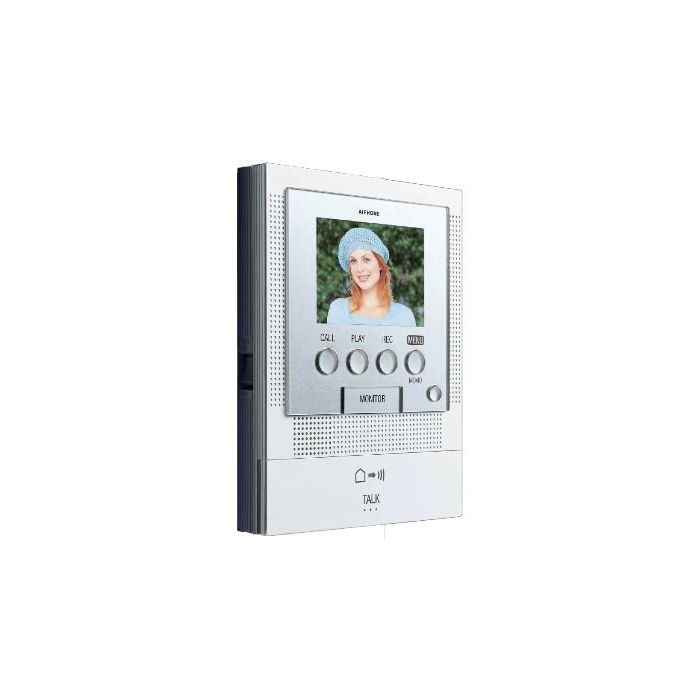

JF-2HD Aiphone JF Series Sub Master Station - 3.5 in Colour Monitor
The JF-2HD is an Aiphone JF Series sub master station for the JF video entry security system. It functions as a sub monitor in systems supporting two video door stations and three inside colour stations, including one master and two sub master stations.
It suits homes, offices and small facilities that need an additional indoor video answering point away from the main monitor. The station supports hands-free communication, door release once communication is established and playback of picture-memory recordings made through the JF master station.
Key Features
- Adds an additional indoor JF video answering point for wider room coverage.
- Hands-free audio communication supports convenient visitor conversations.
- Door release can be operated to the door where communication is established.
- Picture-memory playback allows review of recorded visitor images from the station.
- Surface mounting on a 1-gang box or ring keeps installation straightforward.
- Catalogue Family:
- INTERCOM
- Model:
- JF-2HD
- Product Type:
- Intercom
- Power Source:
- 18V DC, PS-1820UL
- Communication:
- Hands-free VOX or push-to-talk
- Capacity:
- 2 doors, 3 monitors
- Wiring:
- 4-conductor PE insulation between monitors
- Wiring Distance:
- Door to master 330 ft; master to farthest sub 330 ft
- Operating Temperature:
- 0 to 40 deg C
- Dimensions:
- 179 H x 135 W x 32 D mm
- Weight:
- 500 g
