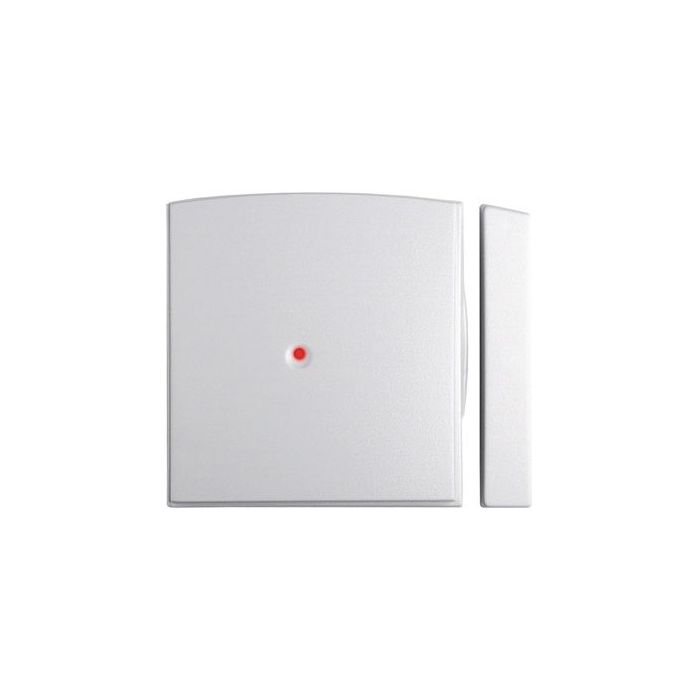

100-527 Ness RR2 Universal Reed Switch Transmitter
The 100-527 is the Ness RR2 Universal Transmitter, a 9 V battery-operated radio transmitter with an onboard reed switch, external input and adjustable vibration analyser.
It accepts inputs from normally closed reed switches, vibration sensors, push buttons and other N.C. devices.
Key Features
- Multi-purpose input options support reed, vibration and normally closed device monitoring.
- Onboard reed switch allows standalone door or window protection.
- Adjustable vibration analyser helps tune response for connected Nessensor use.
- Encrypted supervised signalling is supported when used with compatible Ness equipment.
- Compact transmitter dimensions and 9 V battery operation support flexible placement.
- Catalogue Family:
- ALARM SENSOR
- Product Type:
- Alarm Sensor
- Dimensions:
- 78(h) x 73(w) x 27(d) mm excluding magnet
- Operating Voltage:
- 9 V Lithium battery Ultralife U9VL
- Signals Transmitted:
- Alarm/restore, Tamper, Low battery signal, Learn message
- Radio Security:
- Encrypted signals and supervised operation with compatible receiver/control panel
- Input Selection:
- Internal reed, external input or both in series
- Standby Current Draw:
- <10 uA
- Radio Frequency:
- 303.85 MHz
- Transmit Power:
- 100 uW
- External Input:
- Accepts N.C. devices, 400 mm max cable length to input
- Compatibility:
- All Ness radio receivers
