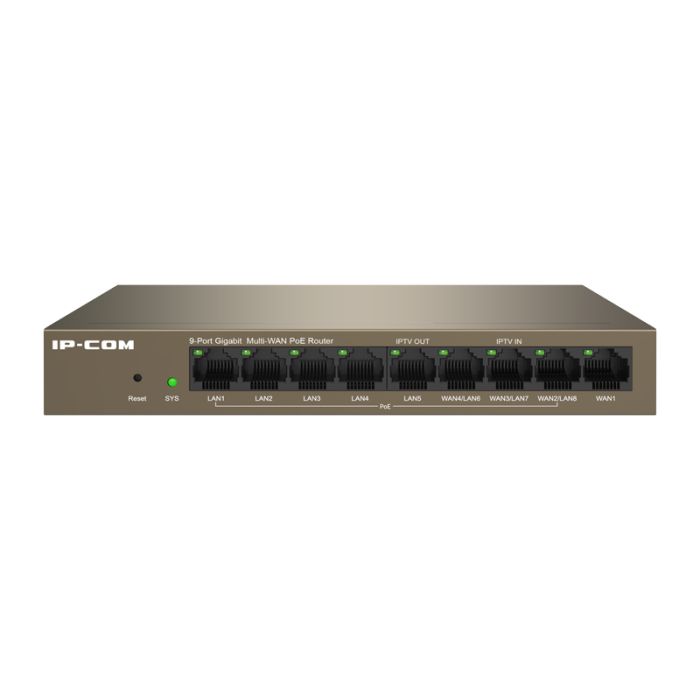

M20-8G-PoE 9-Port Cloud Managed PoE Router
M20-8G-PoE is a 9-port cloud managed PoE router that integrates routing, PoE switching and access-controller functions in one unit. It includes eight 802.3af/at PoE+ LAN ports, supports up to four WAN Ethernet ports, and provides a 95 W PoE budget for connected APs, IP cameras and IP phones.
Designed for small business and enterprise office networks, it supports Router Mode and AC Mode, ProFi Cloud management, IPsec, PPTP and L2TP VPN connections, WAN load balancing and firewall functions. Dual-core 1.0 GHz processing, AP management for up to 128 APs in router mode or 256 in AC mode, and desktop or rack installation support flexible network deployment.
Key Features
- Combines router, PoE switch and AP controller roles to reduce separate hardware needs.
- Cloud management support helps simplify remote monitoring and maintenance.
- Multiple WAN capability helps make better use of several broadband links.
- Built-in VPN options support secure site or remote access network designs.
- Integrated AP management helps centralise configuration for compatible wireless deployments.
- Catalogue Family:
- NETWORK SWITCH
- Model:
- M20-8G-PoE
- Product Type:
- Network Switch
- Installation:
- Desktop and rack installation
- Dimensions:
- 177.5 x 104 x 26 mm
- Operation Mode:
- Router Mode and AC Mode
- Recommended Broadband:
- 1000 Mbps
- Ap Management:
- Router mode: 128 APs; AC mode: 256 APs
- CPU:
- Dual Core 1.0 GHz
- Memory:
- 128 MB RAM; 16 MB Flash
- Ports:
- 9 x GE; max. 4 WAN; max. 8 LAN
- PoE:
- 802.3af/at on LAN1-8; 95 W PoE budget
- Power Supply:
- 51 V DC / 2 A adapter
- Colour:
- Brown
- Operating Temperature:
- -10 ~ +50°
- PoE Ports:
- POE | POE+
- PoE Total Capacity:
- 95W
- Power:
- 51VDC
