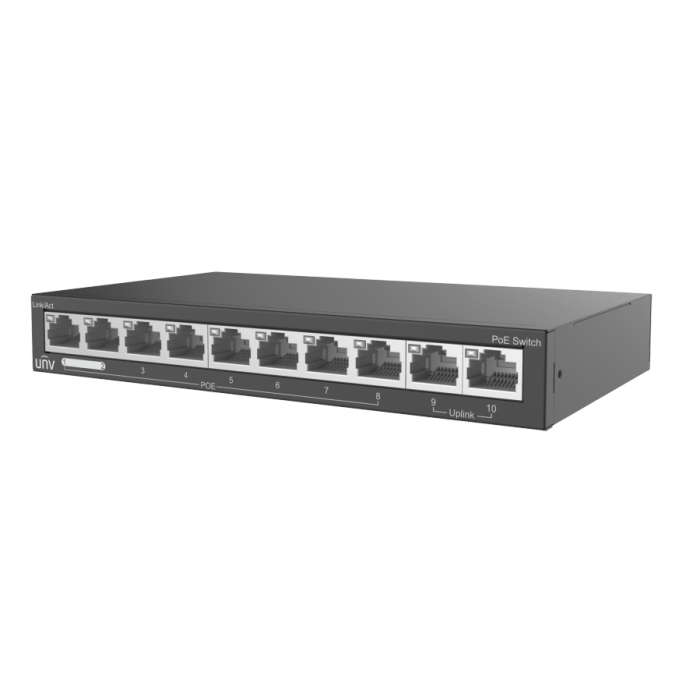

UNVNSW2020-10T-POE-IN NSW2020-10T-POE-IN Unmanaged Ethernet PoE Switch
The NSW2020-10T-POE-IN is a Uniview unmanaged Ethernet PoE switch with 10 x 100 Mbps RJ45 network ports, including 8 PoE ports. It supports a total PoE budget of 88 W, up to 30 W on a single port, and working modes for normal network use or surveillance extend mode.
This switch is designed for small surveillance networks where PoE-powered devices need simple wired connectivity and power from a compact metal-housed unit. Extend mode supports transmission distance up to 250 m, while the fanless design, 2 Gbps switching capacity and 48/51 VDC adapter power suit straightforward camera network rollouts.
Key Features
- Eight PoE ports support simple power and data delivery to connected devices
- Extend mode helps cover longer surveillance cable runs when the mode is required
- Fanless metal housing suits quiet, compact network installations
- Multiple working modes give installers a direct choice between normal and surveillance operation
- Clear front-panel indicators support faster checks during commissioning and fault finding
- Switching Capacity:
- 2Gbps
- Operating Temperature:
- 0 to +40
- Product Type:
- Network Switch
