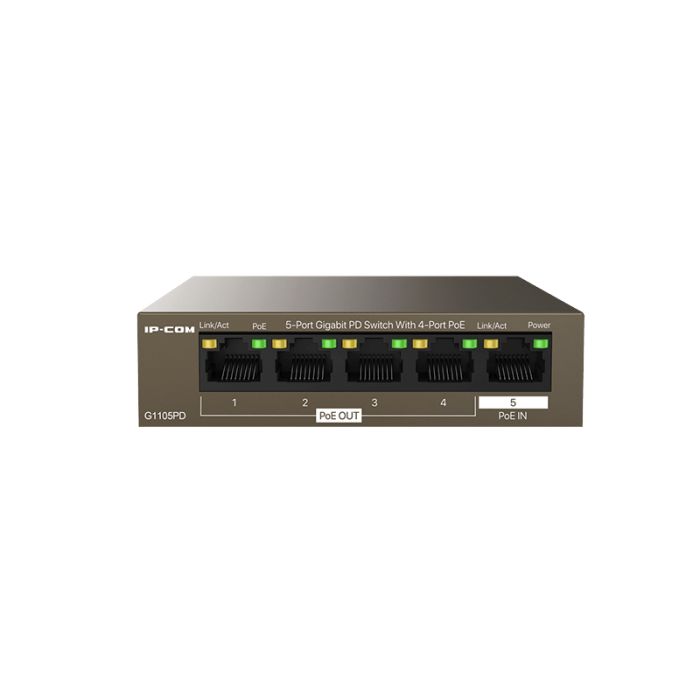

G1105PD 5-Port Gigabit PD PoE Switch - 4-Port PoE Out
G1105PD is a 5-port Gigabit PD switch that functions as both a powered device and a PoE power-sourcing switch. It provides four 10/100/1000 Mbps PoE OUT ports compliant with IEEE 802.3af and one 10/100/1000 Mbps PoE IN port compliant with IEEE 802.3af/at.
Designed for monitoring networks that need to extend data and low-power PoE delivery, it can be powered through port 5 and supply connected APs or IP cameras through ports 1 to 4. Its metal fanless body, 6 kV port lightning protection, 9K jumbo frame support and desktop mounting suit compact relay-style deployments.
Key Features
- Combines PoE input and PoE output roles to support relay-style network extensions.
- Gigabit auto-negotiation ports help maintain throughput across connected edge devices.
- Fanless metal construction keeps the unit compact for small outdoor boxes or local enclosures.
- Jumbo frame support and wire-speed forwarding help maintain smooth large-packet traffic.
- Plug-and-play operation reduces configuration work for long-distance monitoring links.
- Total Port No:
- 4Port
- Switching Capacity:
- 10Gbps
- Material:
- Metal
- Product Type:
- Network Switch
