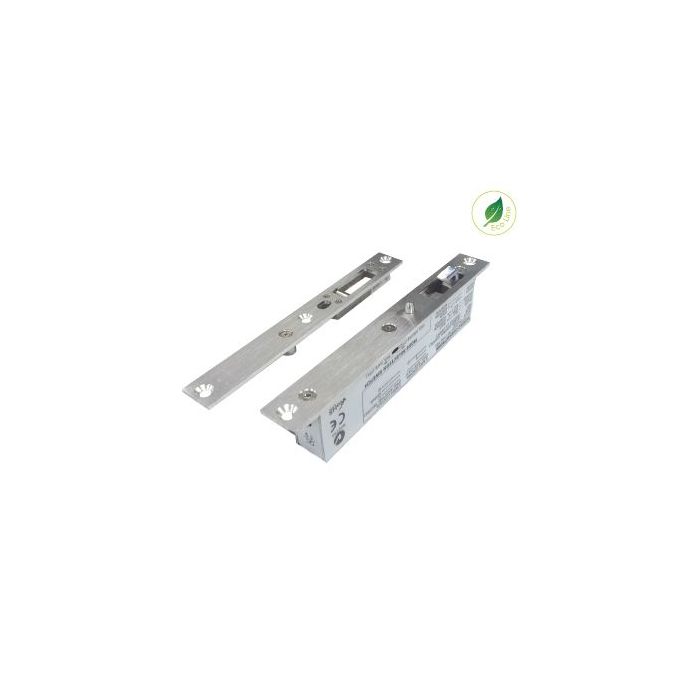

HL1260 FSH High Security Motorised Hook Lock for Sliding Doors
The HL1260 is a patented high-security motorised hook lock for sliding doors. Motor-driven hook lock for sliding doors with vertical door-frame installation, a frame-mounted lock body, and an edge-mounted strike plate.
Suitable for access control and intercom systems in weather-protected areas. Features 12-30 VDC operation, up to 650 kg holding strength, lock and door status monitoring, and low sleep-mode current after locking or unlocking.
Key Features
- Motorised hook action supports secure locking for sliding-door applications.
- Integrated lock and door monitoring provides useful control-system feedback.
- Low sleep-mode current supports efficient locked or unlocked standby states.
- Surface-mount accessory option gives installers more mounting flexibility.
- High cycle and strength ratings support specification for controlled entrances.
- Catalogue Family:
- LOCKING
- Model:
- HL1260
- Function:
- Mortice mount power-to-lock or power-to-release field interchangeable
- Holding Strength:
- Up to 650 kg
- Voltage/Current:
- 12-30VDC active mode 0.29A to 0.85A depending on load sleep mode about 15 mA
- Monitoring:
- Lock Status Sensor and Door Status Sensor built-in reed switch
- Operating Temperature:
- -20 deg C to +60 deg C
- Durability:
- 400000 operating cycles Durability D7
- Strength:
- AS4145.2-2008 Static Strength S8 and Impact Strength S8
- Product Type:
- Locking
