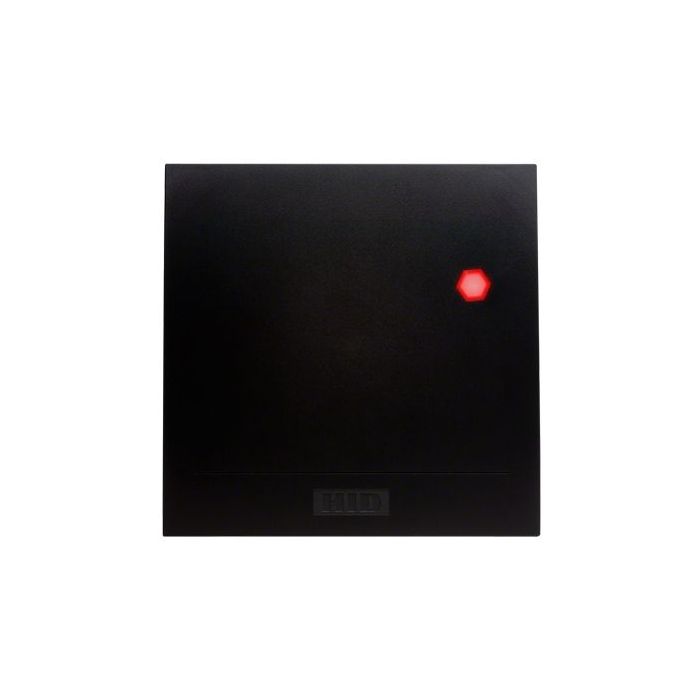

HID-R90SE-6150 HID iCLASS SE R90 Long-Range Reader
HID iCLASS SE R90 long-range 13.56 MHz contactless reader.
Access-control reader with Wiegand, Clock-and-Data and optional RS485 OSDP communication.
Key Features
- Long-range R90 reader format
- 13.56 MHz contactless technology
- 12 V DC or 24 V DC operation
- Wiegand and Clock-and-Data communication
- Optional RS485 OSDP communication
- Metal gooseneck pedestal mounting support
- Catalogue Family:
- READERS
- Reader Model:
- R90
- Input Voltage:
- 12 V DC or 24 V DC
- Current At 12 V DC:
- 110 mA standby, 130 mA maximum average, 300 mA peak
- Current At 24 V DC:
- 70 mA standby, 80 mA maximum average, 150 mA peak
- Operating Temperature:
- -35 °C to 65 °C
- Communications:
- Wiegand, Clock-and-Data and optional RS485 OSDP
- Wiegand and Clock-and-Data Distance:
- Up to 152 m
- Rs485 Distance:
- Up to 1219 m
- Product Type:
- Readers
