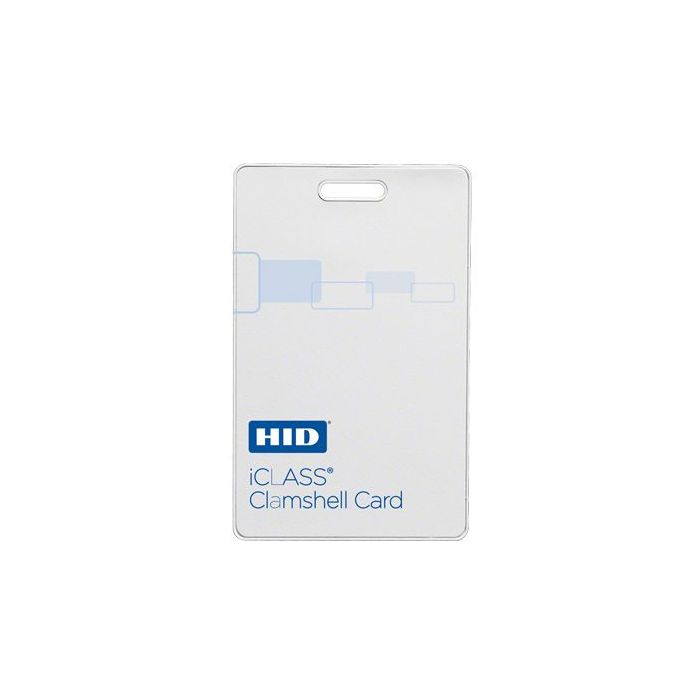

HID-2080 iCLASS Clamshell Smart Card - 2k bit 13.56 MHz
The HID-2080 iCLASS Clamshell Smart Card is a 13.56 MHz read/write contactless credential for electronic access control. It uses HID iCLASS smart card technology with mutual authentication, encrypted data transfer and 64-bit diversified keys, and is supplied as a 2k bit (256 Byte) card with two application areas.
Built with an ABS shell and PVC cover label, this clamshell card is suited to demanding access control environments where a durable credential is required. The HID standard access control application area can be factory or field programmed with existing HID formats, while the second application area supports user customisation.
Key Features
- Supports 13.56 MHz smart-card access control for reliable contactless credential use.
- Helps strengthen card-to-reader communication through authentication and encrypted data transfer.
- Provides a dedicated HID access control area plus a second area for supported custom applications.
- Durable clamshell construction helps the card perform in harsh operating environments.
- Offers practical factory or field programming options for HID access control deployments.
- Catalogue Family:
- CARDS
- Product Type:
- Card / Fob
- Technology:
- 13.56 MHz read/write contactless smart card
- Memory Type:
- EEPROM, read/write
- Multi-Application Memory:
- 2k bit (256 Byte) with 2 application areas
- Application Areas:
- HID standard access control application area and one user customisation area
- Dimensions:
- 2.125 in x 3.375 in x 0.070 in max. (5.40 x 8.57 x 0.18 cm)
- Card Construction:
- ABS shell with PVC cover label
- Programming:
- Existing HID format can be factory or field programmed into the HID access control application area
- Attachment Format:
- Slot-punched for lanyard attachment
- Contactless Communications Standard:
- Meets ISO 15693 standard
- Typical Maximum Read Range:
- R10: 1.5-2.5 in (3.8-6.3 cm); R30/RW300: 1.5-3.0 in (3.8-7.6 cm); R40/RW400: 2.5-4.5 in (5.1-10.2 cm); RK40/RWK400: 3.0-4.0 in (6.3-8.9 cm). Dependent upon installation conditions.
- Warranty:
- Lifetime
