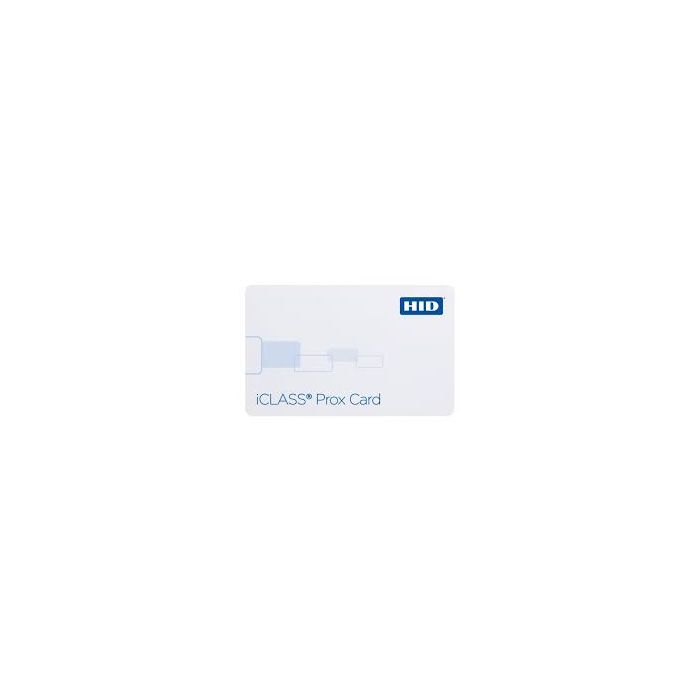

HID-2120 HID iCLASS Prox 2K Combination Smart Card
The HID-2120 is an iCLASS Prox combination credential that integrates 13.56 MHz iCLASS read/write smart-card technology with 125 kHz HID Proximity technology in one card. Base part number 2120 provides 2k bit (256 Byte) memory with two application areas.
The card supports phased migration from HID Proximity systems to iCLASS applications while allowing both credential technologies to remain available in a single card.
Key Features
- Combines 13.56 MHz iCLASS smart-card technology and 125 kHz HID Proximity technology.
- Supports migration from HID Proximity readers to iCLASS applications.
- 2k bit (256 Byte) EEPROM memory with two application areas.
- Thin, flexible PVC laminate construction.
- Compatible with direct image and thermal transfer card printing.
- Catalogue Family:
- CARDS
- Credential Type:
- iCLASS Prox combination card
- Technologies:
- 13.56 MHz iCLASS and 125 kHz HID Proximity
- Memory:
- 2K bit / 256 Byte card
- Dimensions:
- 5.40 x 8.57 x 0.084 cm
- Operating Temperature:
- -40 deg C to 70 deg C
- Operating Humidity:
- 5% to 95% non-condensing
- Product Type:
- Card / Fob
