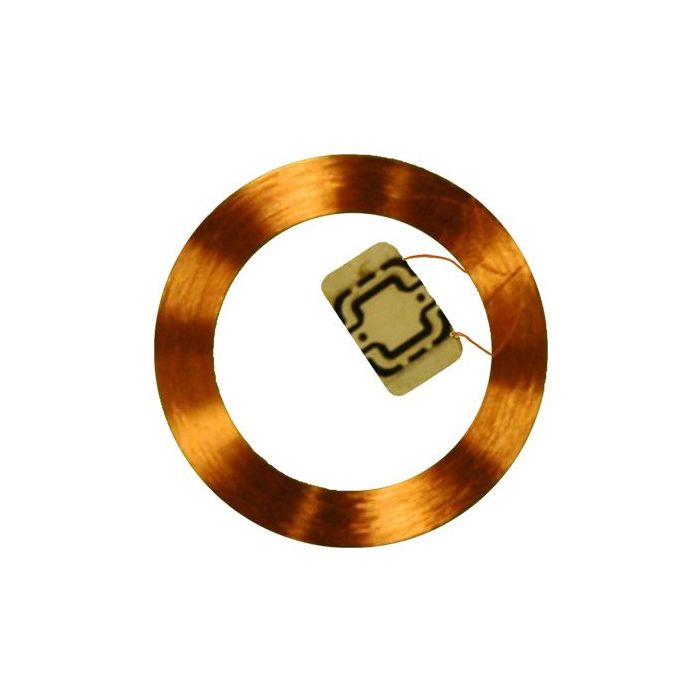

HID-2070 HID iCLASS SE 2K eUnit Insert
The HID-2070 is an HID iCLASS SE 13.56 MHz contactless eUnit insert with 2K-bit memory. It is a read/write credential component designed for embedding into compatible devices or credentials.
It is intended for integration into non-metallic materials or custom credential formats where a finished card or fob is not required. The eUnit format supports OEM-style credential builds while retaining iCLASS SE security and read/write capability.
Key Features
- Embeddable insert format supports custom credential or device designs.
- ICLASS SE technology provides secure 13.56 MHz read/write communication.
- 2K bit memory supports two application areas for access-control use.
- Designed for use where the credential is built into another non-metallic form.
- RF-programmable support helps simplify encoding in HID iCLASS SE environments.
- Catalogue Family:
- CARDS
- Credential Type:
- ICLASS SE eUnit insert
- Operating Frequency:
- 13.56 MHz
- Memory:
- 2K bit / 256 Byte with 2 application areas
- Dimensions:
- 32 mm diameter x 1.78 mm thickness
- Product:
- 13.56 MHz iCLASS SE eUnit
- Use Note:
- For embeddable credential applications
- Product Type:
- Card / Fob
