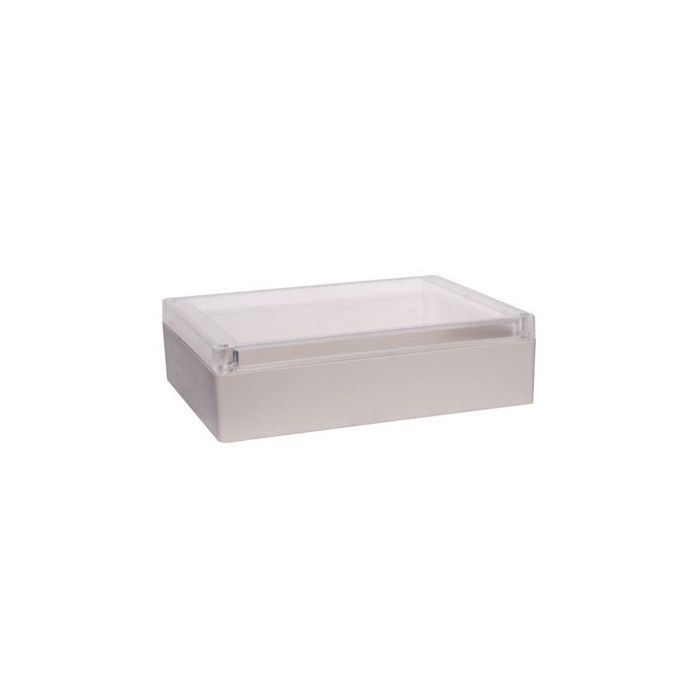

H0332 Ritec IP65 Sealed ABS Enclosure with Clear Lid - 220 x 165 x 60 mm
The H0332 is an IP65-rated sealed enclosure identified by the H0332A / RP1455C reference. It features a light grey ABS base, a clear lid, a sealing gasket, and internal PCB mounting provisions.
The clear lid allows internal components to be viewed without opening the enclosure, making it suitable for housing electronic assemblies that require environmental protection and visual inspection.
Key Features
- IP65-rated sealed enclosure for protected electronic installations.
- Clear lid allows visual inspection of internal components.
- Light grey ABS base construction.
- Internal mounting posts support PCB installation.
- Supplied with stainless-steel screws, PCB screws, and a sealing gasket.
- Catalogue Family:
- ENCLOSURES
- Model:
- H0332A / RP1455C
- Product Type:
- Enclosures
- Dimensions:
- 220 x 165 x 60 mm
- Ingress Protection:
- IP65
- Material:
- Plastic
- Operating Temperature:
- -30°C to +75°C
- Included Hardware:
- 4 stainless-steel screws, 8 PCB screws, and 1 sealing gasket
- Optional Accessories:
- Mounting plate and mounting feet (sold separately)
