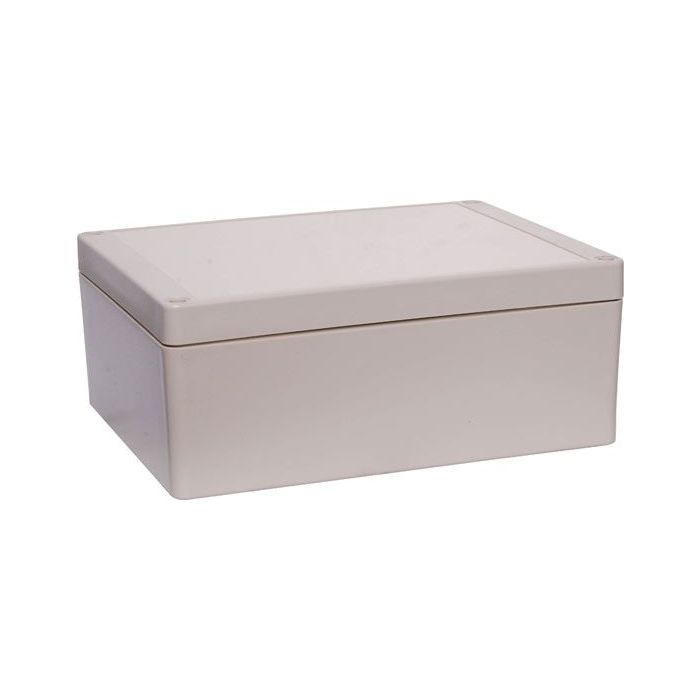

H0310 Ritec IP65 Sealed ABS Enclosure - 186 x 146 x 75 mm Grey Lid
The H0310 is a Ritec IP65 sealed ABS enclosure with grey lid and grey base, sized 186 L x 146 W x 75 H mm. It includes a neoprene lid sealing gasket, PCB mounting points and IP65 dust and moisture ingress protection when correctly sealed.
It is suitable for housing electronics, small assemblies and field equipment where a sturdy ABS utility box is required. The 3 mm wall construction, UL 94HB rating and -30 deg C to +80 deg C temperature range support a wide range of enclosure applications.
Key Features
- IP65 sealed enclosure format supports protected indoor or suitable outdoor equipment housing.
- Grey ABS lid and base provide a durable general-purpose utility box.
- Moulded PCB mounting points help secure internal electronics cleanly.
- Neoprene lid gasket supports dust and moisture ingress protection when fitted.
- Temperature and flame-rating data support practical specification for equipment builds.
- Catalogue Family:
- ENCLOSURES
- Model:
- H0310 / RP1285
- Product Type:
- Enclosures
- Lid and Base:
- Grey lid and grey base
- Dimensions:
- 186 L x 146 W x 75 H mm
- Ingress Protection:
- IP65 with seal installed
- Gasket:
- Neoprene lid sealing gasket
- Wall Thickness:
- 3 mm
- Flame Rating:
- UL 94HB
- Temperature Range:
- -30 deg C to +80 deg C
- Mounting Feet:
- H0350 listed separately
