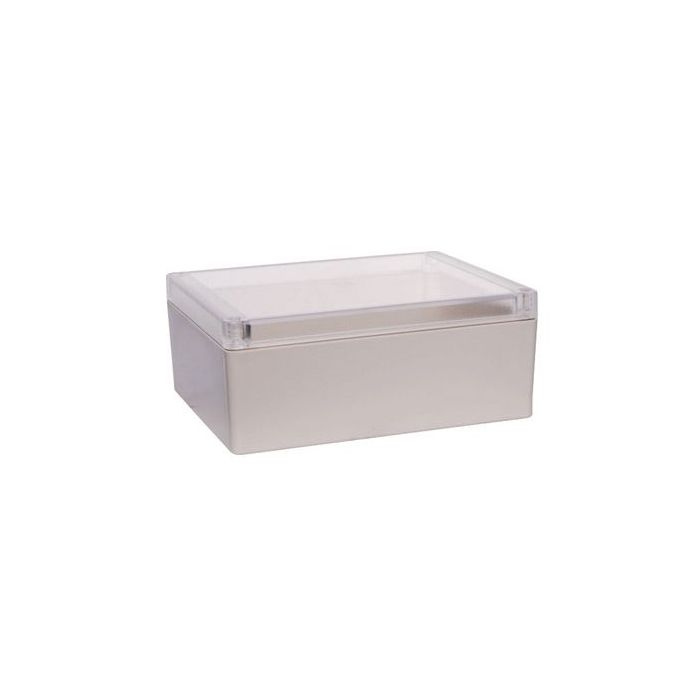

H0330 Ritec IP65 Sealed ABS Enclosure With Clear Lid - 186 x 146 x 75 mm
The H0330 is a Ritec IP65 sealed enclosure with a clear lid and grey ABS base, sized 186 L x 146 W x 75 H mm. It uses a neoprene gasket, moulded mounting posts and clear-lid construction for protected electronics housing.
It suits installations where the contents, indicators or internal labelling need to remain visible without opening the box. Recessed panel areas and the temperature range support practical use in equipment, control and project enclosures.
Key Features
- Clear lid allows visual inspection of internal indicators or labelling.
- IP65 sealed enclosure format supports protected equipment housing when correctly assembled.
- Moulded mounting points help secure PCBs and components inside the enclosure.
- Neoprene lid gasket supports dust and moisture ingress protection.
- Grey ABS base provides a practical enclosure body for electrical and electronic builds.
- Catalogue Family:
- ENCLOSURES
- Model:
- H0330 / RP1285C
- Product Type:
- Enclosures
- Lid and Base:
- Clear lid and grey base
- Dimensions:
- 186 L x 146 W x 75 H mm
- Ingress Protection:
- IP65 with seal installed
- Gasket:
- Neoprene lid sealing gasket
- Mounting Posts:
- Moulded mounting posts in base and lid
- Temperature Range:
- -30 deg C to +80 deg C
- Mounting Feet:
- H0350 listed separately
