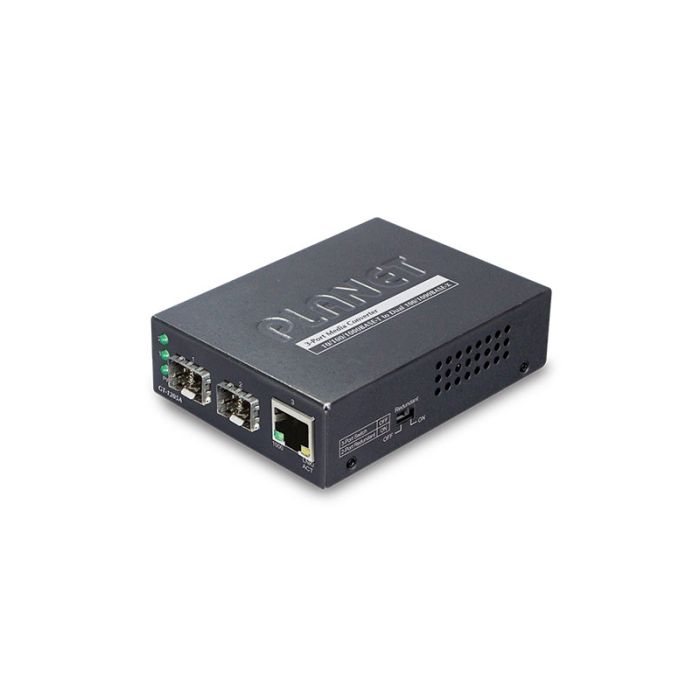

GT-1205A PLANET Gigabit Media Converter with Dual SFP Slots
The GT-1205A is a PLANET Gigabit media converter with one 10/100/1000Base-T RJ45 port and two 100/1000Base-X SFP fibre slots. It supports selectable 100BASE-FX or 1000BASE-X SFP operation and provides redundant fibre connectivity for Gigabit Ethernet networks.
The media converter is designed to convert Gigabit Ethernet over copper to SFP-based fibre while supporting redundant fibre links. It can operate as a standalone unit or be installed in a compatible PLANET media converter chassis for centralised deployment.
Key Features
- Dual SFP slots support flexible primary and backup fibre link design
- Copper-to-fibre conversion extends Gigabit Ethernet beyond copper distance limits
- DIP switch configuration supports SFP speed selection and operation mode changes
- Store-and-forward switching and flow control support stable media conversion
- Compact unit supports wall mounting DIN rail kit use or chassis deployment
- Catalogue Family:
- MODEMS & ROUTERS
- Product Type:
- Modems & Routers
- Hardware Version:
- 4
- Copper Port:
- 1 x 10/100/1000Base-T
- Fibre Ports:
- 2 x 100/1000Base-X SFP slots
- Switch Fabric:
- 6 Gbps
- Throughput:
- 4.4 Mpps
- Maximum Packet Size:
- 10 Kbytes
- Dimensions:
- 94 x 70 x 26 mm
- Weight:
- 180 g device only
- Power Requirement:
- 5 V DC, 2 A max.
- Power Consumption:
- 2.8 W / 9.5 BTU per hour max.
- Operating Environment:
- 0 to 50 degrees C; 5% to 95% relative humidity non-condensing
