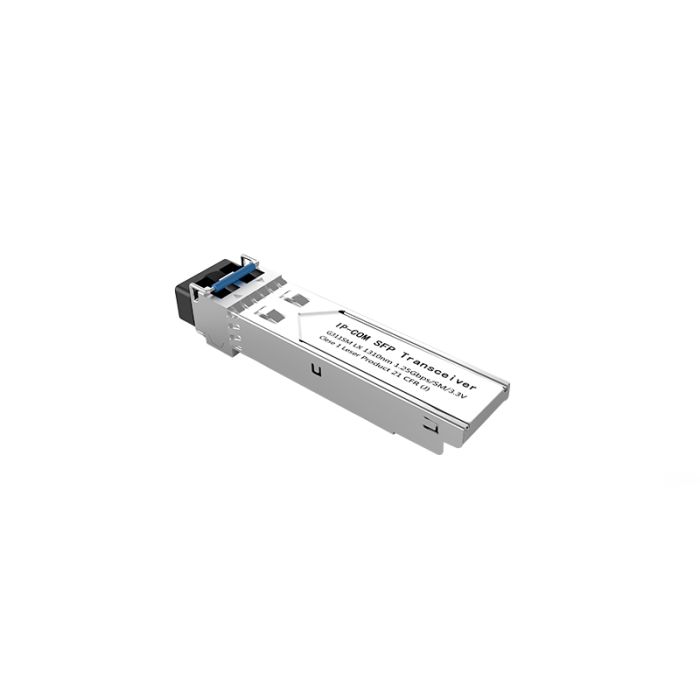

G311SM Single-Mode SFP Optical Fibre Module - 1000Base-LX LC
G311SM is a single-mode optical fibre module for SFP-equipped network switches. It is a 1000Base-LX single-mode SFP optical transceiver module with an LC port, IEEE 802.3z support, and a 1310 nm transmission wavelength.
The module is suitable for large and medium LAN environments requiring fibre links between compatible SFP devices. It supports hot-plugging, automatic SFP module identification, full-duplex operation, and 3.3 V internal switch power.
Key Features
- Single-mode fibre support for extended LAN connections.
- LC interface for 1000Base-LX SFP fibre connections.
- Hot-pluggable design with automatic SFP module identification.
- Full-duplex support for Gigabit fibre communication.
- 3.3 V internal switch power with no external power supply required.
- Catalogue Family:
- POWER SUPPLY
- Model:
- G311SM
- Product Type:
- Power Supply
- Standard:
- IEEE 802.3z
- Transceiver Type:
- 1000Base-LX single-mode SFP optical transceiver
- Interface Type:
- LC
- Transmission Range:
- 20 km
- Transmission Medium:
- 9/125 um single-mode optical fibre
- Transmission Wavelength:
- 1310 nm
- Transmission Rate:
- 1.25 Gbps
- Power Supply:
- 3.3 V internal power supply by switch
- Connector Type:
- LC
