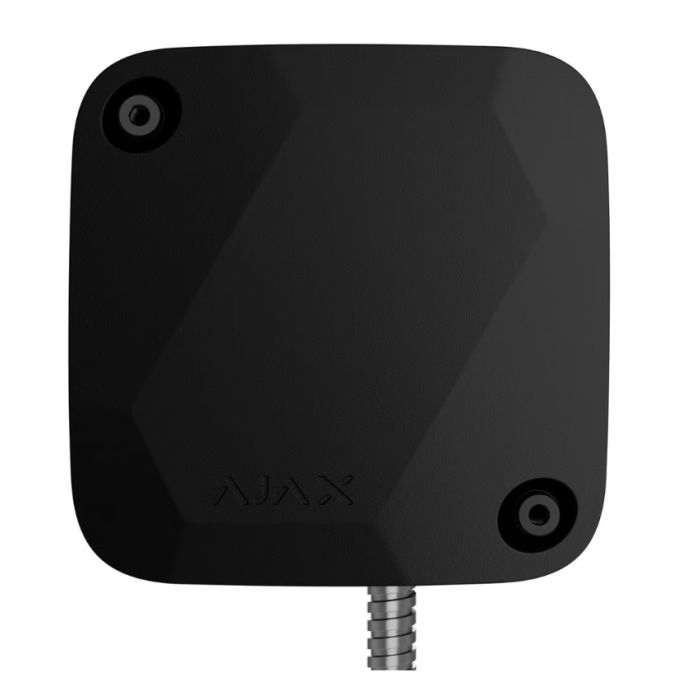

Ajax 117736 Superior SeismoProtect G3 Fibra Wired Seismic and Shock Detector - Black
The Ajax Superior SeismoProtect G3 Fibra is a wired seismic detector with an additional shock sensor for monitoring attempts to breach protected structures. Its piezoelectric sensor detects vibrations from drilling, cutting, explosions and applied force, while an accelerometer detects shocks and changes in tilt and a digital temperature sensor detects rapid temperature rises or threshold exceedance.
Hardware processing and a software algorithm analyse structure-borne sound to distinguish threats from vibration caused by swinging doors, nearby maintenance work or passing heavy vehicles. Fibra technology provides encrypted wired communication with an Ajax hub across distances of up to 2,000 m using the specified U/UTP Cat.5 cable, with central configuration and system monitoring through Ajax apps.
Key Features
- Operating radius up to 4 m on concrete and 2 m on steel
- Three sensitivity levels, adjustable 5 Deg to 25 Deg tilt threshold and option to ignore a single shock
- Automatic line scanning or QR code enrolment without full enclosure disassembly
- Automatic self-diagnosis, status reports and detailed notifications
- Dual tampers, device authentication, circuit protection and enclosure-integrity monitoring
- Colour:
- Black
- Product Type:
- Alarm Sensor
- Catalogue Family:
- ALARM SENSOR
- Technology:
- Seismic
