Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.
C500318 Gallagher SMB 2-Door Base Kit - 2 Black T15 Multi Tech Readers
The Gallagher C500318 SMB Base Kit contains the core hardware for an SMB access control and intruder alarm system. Both functions are managed through the Gallagher SMB smartphone app.

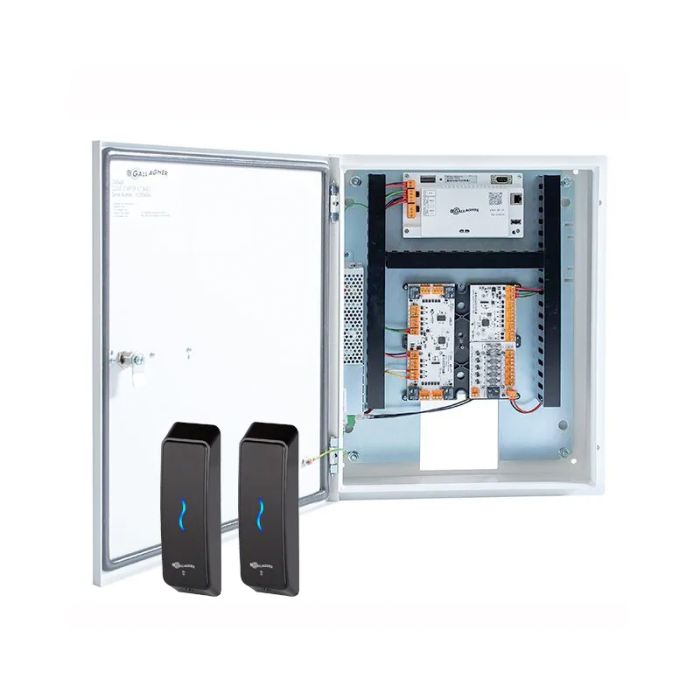

The kit includes an SMB cabinet, controller, mounting infrastructure and internal cabling. A 7 Ah 12 V standby battery and IEC power lead are not included.
Key Features
- Two black SMB T15 Multi Tech Readers support the two-door configuration
- SMB HBUS 8In Board provides dedicated input hardware
- SMB HBUS 8In 4Out Board provides combined input and output hardware
- SMB Fire Relay and Fuse Board supplies integrated fire relay and fused connection hardware
- 3.5 A power supply and I/O Board Mounting Plate are included in the cabinet assembly
60 MONTHS
- Catalogue Family:
- POWER SUPPLY
- Kit Configuration:
- SMB Base Kit T15 Black - 2 Readers
- Reader Configuration:
- 2 x T15 Readers Black
- Core Kit Platform:
- SMB Controller 6000, HBUS 8In Board, HBUS 8In 4Out Board, SMB Fire Relay and Fuse Board, 3.5 A power supply and I/O mounting plate
- Default System Capacity:
- 4 access controlled doors, 16 inputs and 4 outputs
- Maximum System Capacity:
- 10 doors, 128 inputs and 64 outputs
- Hbus Device Capacity:
- 16 HBUS I/O boards and 10 readers
- Cabinet Dimensions:
- 500 x 480 x 150 mm
- Cabinet Protection Rating:
- IP44
- Power Supply:
- 3.5 A
- Product Type:
- DOOR KIT
- Series:
- SMB
- Input:
- 16x INPUTS
- Output:
- 4x OUTPUTS
