C500201 SMB Single Door Kit

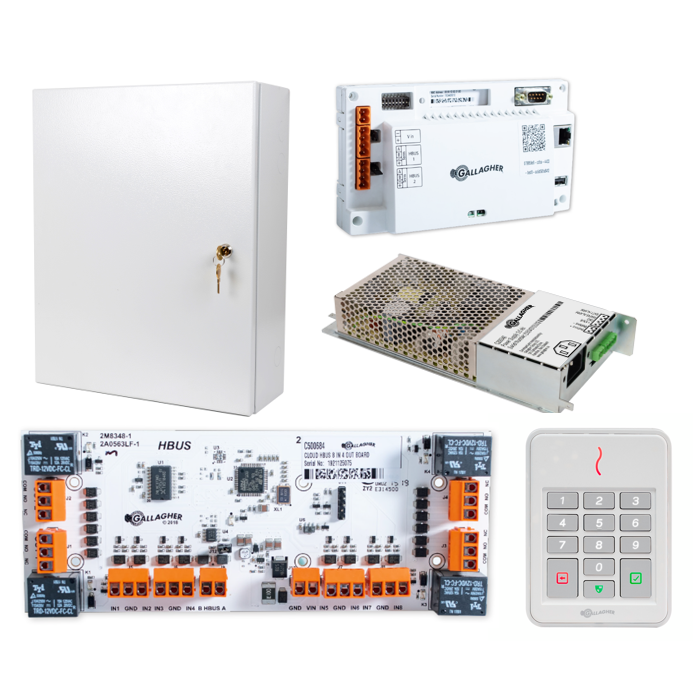

The C500201 is a Gallagher SMB Single Door Kit for the Gallagher SMB cloud-based security platform. The kit includes an SMB Single Door Cabinet, SMB Controller 6000, SMB HBUS 8In 4Out Board, 3.5 A power supply and 1 SMB T30 Multi Tech Reader White.
The kit supports a single access-controlled door with Gallagher SMB access control and intruder alarm functionality.
Key Features
- Groups the controller, cabinet, I/O and reader hardware into one SMB kit configuration
- Supports Gallagher SMB cloud-based alarm, access control and user management workflows
- Uses HBUS RS485 connectivity for reader and field I/O communication
- Documents a clear default door capacity with expansion headroom in the SMB platform
- Provides a kit-level configuration that helps installers plan cabinet, power and reader requirements together
- Catalogue Family:
- READERS
- Model:
- C500201
- Kit Type:
- SMB Single Door Kit
- Reader Configuration:
- 1 x SMB T30 Multi Tech Reader White
- Kit Contents:
- SMB Single Door Cabinet, SMB Controller 6000, SMB HBUS 8In 4Out Board, 3.5 A power supply and 1 x SMB T30 Multi Tech Reader White
- Default Capacity:
- 1 access controlled door, 8 inputs and 4 outputs
- Maximum Capacity:
- 10 access controlled doors; 256 inputs; 64 or 256 outputs where stated by variant
- Hbus Device Capacity:
- 16 HBUS I/O boards and 10 readers
- Cabinet Dimensions:
- 400 x 300 x 133 mm
- Cabinet Protection Rating:
- IP44
- Controller Voltage:
- 9-16 Vdc
- Controller Dimensions:
- 100 x 180 x 42 mm
- Product Type:
- Readers
