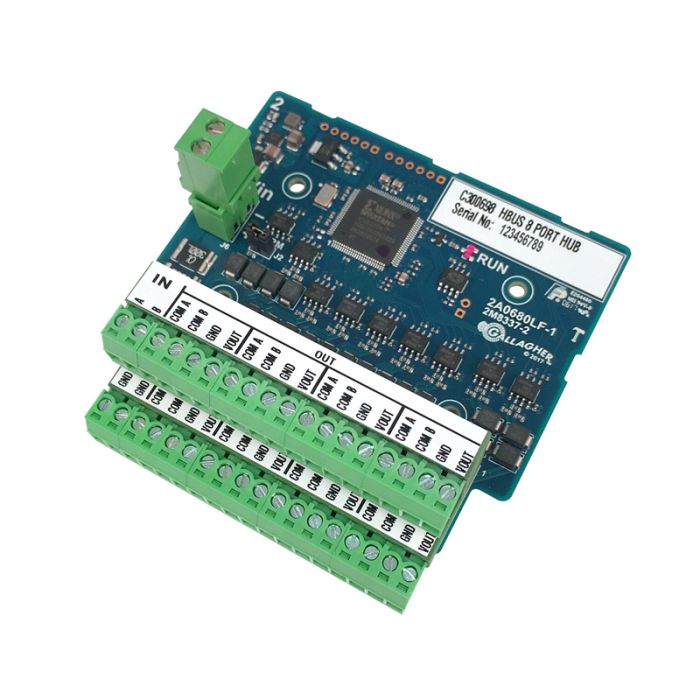

C300698 Gallagher HBUS 8-Port RS-485 Hub
The Gallagher C300698 is an eight-port HBUS RS-485 distribution hub that consolidates downstream HBUS data wiring into a single upstream run. It supports multiple HBUS devices across the connected RS-485 branches.
The quarter-footprint PCB is designed for installation within Gallagher hardware. Integrated HBUS signal regeneration allows the hub to operate as a repeater where additional cable distance is required.
Key Features
- Consolidates data from up to eight downstream HBUS RS-485 runs into one upstream connection
- Supports multiple HBUS devices on each of the eight downstream runs
- Allows additional HBUS devices to be connected further upstream from the hub
- Extends the standard 500 m HBUS range to a maximum of 1,000 m using one hub
- Quarter-footprint design allows up to four hubs on one Gallagher hardware footprint
60 MONTHS
- Wiring:
- HARDWIRED
- Product Type:
- HBUS 8-PORT HUB
- Inputs:
- 8x HBUS RS-485 INPUT
- Outputs:
- 1x HBUS RS-485 OUTPUT
- Connection Type:
- RS-485
- Mounted:
- PCB
- Features:
- EXTENDS HBUS UPTO 1KM
