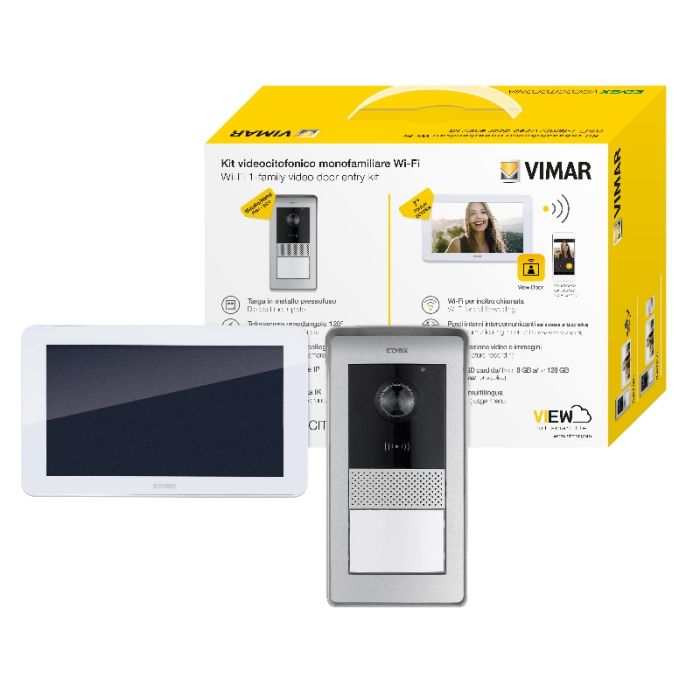

ELVK42945 Elvox 7 Inch Wi-Fi Video Door Entry Kit with RFID - Multiplug
The ELVK42945 is an Elvox surface-mount video door entry kit with a hands-free Wi-Fi 7 inch LCD colour touch screen video entryphone, an RFID audio-video entrance panel with one push button and rain-proof frame, and a 24 VDC 1 A power supply unit with interchangeable plug adapters. It is a one-family/two-family hands-free Wi-Fi video door entry system.
The system supports remote app operation, lock or relay activation and two-wire video door entry. The entrance panel is suitable for outdoor surface-wall installation and includes a weather-rated housing.
Key Features
- Adds Wi-Fi app capability to a two-wire Elvox video entry kit platform
- Supports neat wall-mounted installation with a touch screen indoor station and entrance panel
- Helps installers manage small multi-point systems through station capacity limits
- Balances daily user convenience with installer-friendly surface mounting and two-wire system design
- Catalogue Family:
- INTERCOM
- Kit Type:
- Surface mounting video door entry kit
- Indoor Station Display:
- 7 inch LCD TFT capacitive touch screen
- Indoor Station Resolution:
- 1024 x 600 RGB
- Indoor Station Wi-Fi:
- IEEE 802.11 b/g/n 2.4 GHz
- Indoor Station Dimensions:
- 188.8 mm L x 113.6 mm H x 14.9 mm D without wall support
- Entrance Panel:
- RFID audio-video entrance panel with one push button and rain-proof frame
- Entrance Panel Protection:
- IP54 and IK07
- Entrance Panel Dimensions:
- 90.5 mm L x 190 mm H x 33 mm D without rainproof cover
- Power Supply:
- 24 VDC 1 A
- Plug Adapters:
- European, UK, US and Australian standard interchangeable plugs
- Product Type:
- Intercom
