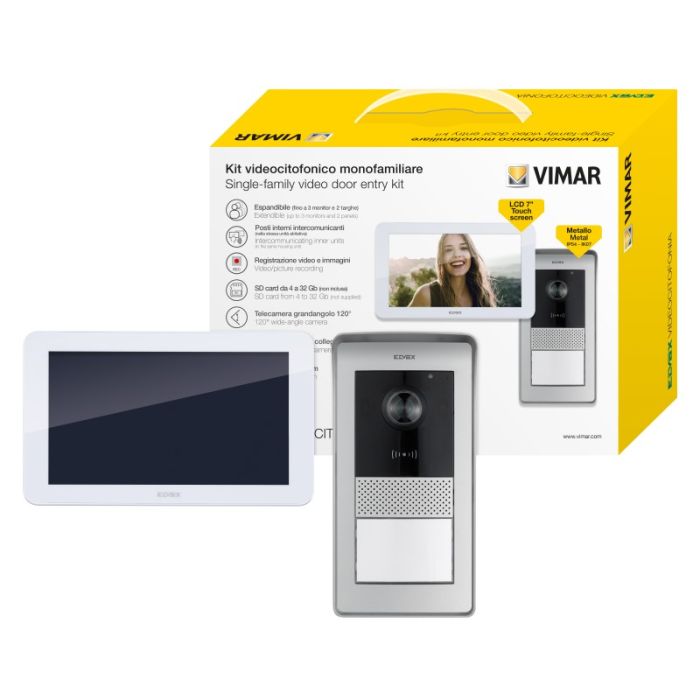

ELVK42915 Elvox Due Fili 7 Inch Touch Screen Video Door Entry Kit
The ELVK42915 is an Elvox Due Fili hands-free video door entry kit with a 7 inch capacitive touch screen video entryphone and an audio-video entrance panel. It supports one-family and two-family video door entry installations with a surface-wall mounted entrance panel and a 24 V power supply arrangement, depending on the kit version.
The kit supports a two-wire system with up to two outdoor stations, one CCTV camera for each outdoor station and up to three indoor stations per family. The entrance panel includes RFID/NFC reader support and is rated IP54 and IK07.
Key Features
- Gives installers a complete two-wire video entry platform for one-family or two-family projects
- Supports practical expansion planning through outdoor and indoor station limits
- Improves day-to-day usability with a touch screen indoor station and adjustable video entry controls
- Provides a surface-mounted outside calling point with weather and impact protection ratings
- Keeps power planning straightforward with 24 V kit power-supply options
- Catalogue Family:
- INTERCOM
- System Type:
- One-family/two-family hands-free video door entry kit
- System Capacity:
- Up to two outdoor stations and three indoor stations per family
- Indoor Station Display:
- 7 inch LCD TFT capacitive touch screen
- Indoor Station Resolution:
- 1024 x 600 RGB
- Indoor Station Dimensions:
- 188.8 mm L x 113.6 mm H x 14.9 mm D without wall support
- Entrance Panel Viewing Angle:
- 130 degree horizontal wide angle
- Entrance Panel Protection:
- IP54 and IK07
- Entrance Panel Dimensions:
- 90.5 mm L x 190 mm H x 33 mm D without rainproof cover
- Power Supply Output:
- 24 VDC 1 A
- Multi-Plug Adapter Standards:
- AU / EU / UK / US plug adapters
- Product Type:
- Intercom
