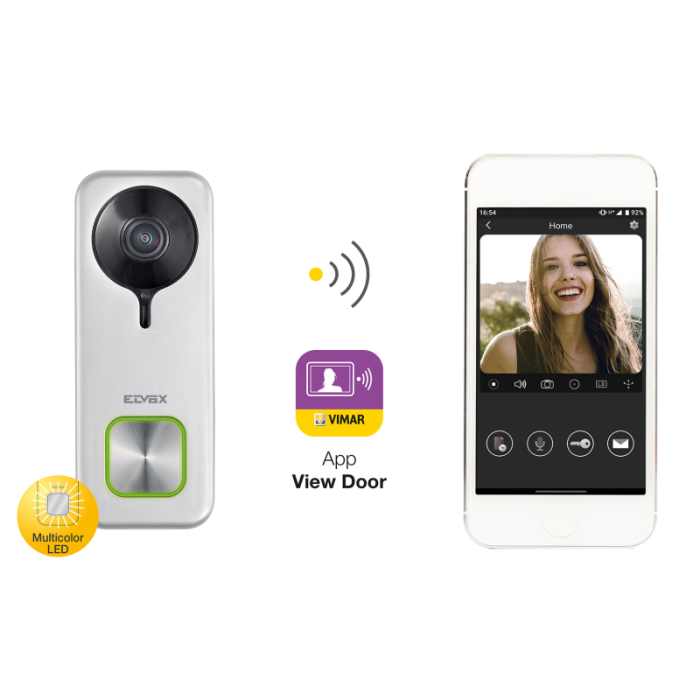

ELVK40960 Wi-Fi Video Doorbell Kit - 24 V DC
The ELVK40960 is a Wi-Fi video doorbell kit for smart video door entry calls to connected apps, with response, lock and actuator management plus audio and video storage on request or following specific events. The doorbell uses 24 V DC input, a 1/3 in 4 Mpx CMOS sensor and 2K maximum video resolution.
Designed for surface mounting with the supplied bracket, the kit includes the Wi-Fi video doorbell, power supply unit, installed 8 GB SD card, terminals, mounting hardware, anti-vandal screw key, reset key and labelling sheets. It requires a stable 2.4 GHz Wi-Fi network with DHCP server and internet access for app-connected operation.
Key Features
- App-connected door entry lets users answer and manage access from supported smartphones.
- 2K video capture and infrared lighting support clearer visitor viewing by day or night.
- Event recording options help retain useful audio, photo and video activity.
- IP54 protection and anti-tamper signalling support exposed entry-point use.
- Included power and mounting accessories make the kit ready for a complete supported installation.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Power Input:
- 24 V DC
- Video Sensor:
- 1/3 in CMOS, 4 Mpx
- Maximum Video Resolution:
- 2K, 2560 x 1440 pixels
- Video Compression:
- H.264
- Wi-Fi:
- IEEE 802.11 b/g/n 2.4 GHz
- Wi-Fi Frequency Range:
- 2412-2472 MHz
- RF Frequency Range:
- 433.92 MHz
- Protection Rating:
- IP54
- Dimensions:
- 52 mm x 133 mm x 24.5 mm
- Kit Contents:
- Wi-Fi video doorbell with rear bracket, power supply unit, installed 8 GB SD card, terminals, screws, wall plugs, anti-vandal screw key, reset key and labelling sheets
- Colour:
- Silver
- Device Type:
- 1 BUTTON AUDIO/VIDEO DOOR STATION
- Display Size:
- None
- Mounting:
- Surface Mount
- Power:
- 24VDC
- SD Card:
- BUILT IN 8GB SD CARD
- Solution:
- RESIDENTIAL
- Suits:
- *OPTIONAL DR CHIME*
