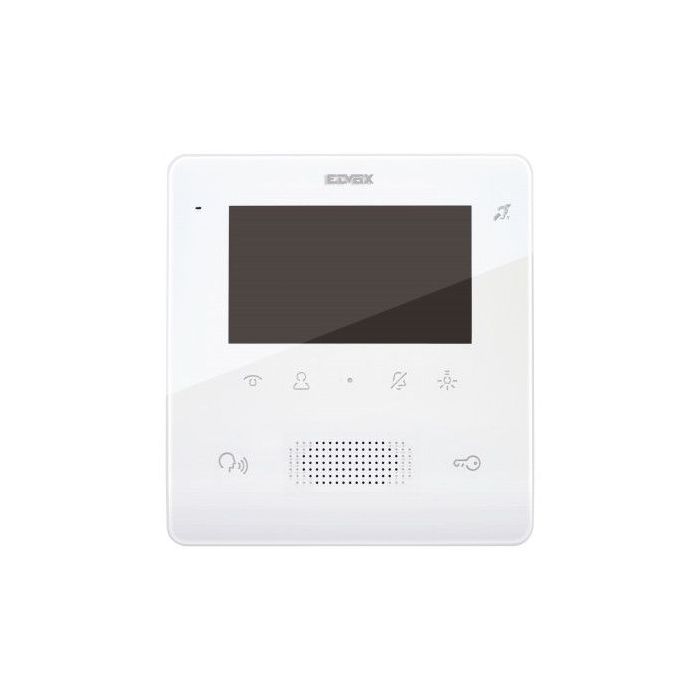

ELV7559 Elvox Tab 4.3 Due Fili Plus Hands-Free Video Entryphone
The ELV7559 is an Elvox TAB 4.3 Due Fili Plus hands-free video entryphone. It is a wall-mount Tab series hands-free indoor unit with a 4.3 inch LCD colour display, loudspeaker for calls and capacitive keypad for entryphone functions.
It is built for Due Fili Plus indoor station use, with controls for lock release, self-start, auxiliary services, volume, brightness, contrast and intercom calls. It also supports teleloop use for hearing aid wearers and wall mounting with a metal bracket.
Key Features
- Hands-free video entry design supports everyday visitor communication without a handset.
- 4.3 inch colour display gives users visual feedback from the Due Fili Plus system.
- Capacitive backlit keypad keeps core intercom controls accessible at the indoor unit.
- Teleloop support makes the unit usable by hearing aid wearers where suitable hearing aids are used.
- Wall mounting and optional desktop placement give installers flexible positioning options.
- Catalogue Family:
- INTERCOM
- Product:
- TAB 4.3 Due Fili Plus hands-free video entryphone
- System:
- Due Fili Plus
- Mounting:
- Wall-mounted with metal bracket
- Display:
- 4.3 inch LCD 16:9 colour display
- Display Resolution:
- 480 x 272 pixels
- Power Supply:
- Due Fili Plus BUS terminals 1 and 2, 28 Vdc rated voltage
- Standby Absorption:
- 17 mA
- Maximum Current:
- 280 mA
- Degree of Protection:
- IP30
- Operating Temperature:
- -5 deg C to +40 deg C, indoor use
- Dimensions:
- 155 x 145 x 23.5 mm
- Ringtone Melodies:
- 10
- Local Input:
- Outside-door call input
- Standards Listed:
- EN 60065, EN 61000-6-1, EN 61000-6-3, EN 60118-4
- Colour:
- White
- Device Type:
- MONITOR
- Display Size:
- 4.3 INCH DISPLAY
- Power:
- POWER BY BUS CONTROLLER
- Series:
- TAB FREE
- Solution:
- APARTMENT
- Technology:
- 2-WIRE
- Product Type:
- Intercom
