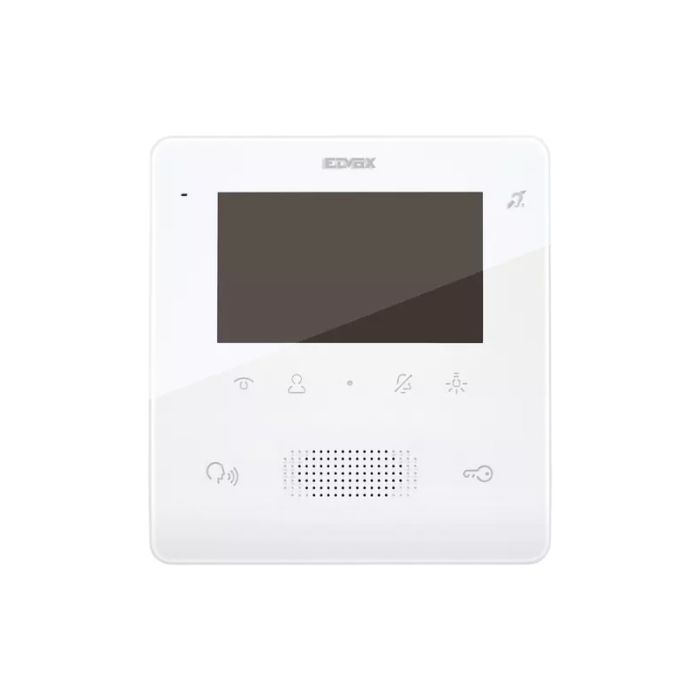

ELV7558 Tab Free Due Fili Plus Hands-Free Monitor - 4.3 in LCD
ELV7558 is a Vimar Elvox Tab Free 4.3 hands-free video indoor monitor for Due Fili Plus door entry systems with a 4.3 in 16:9 LCD display, 480 x 272 resolution, and a capacitive touch keypad with backlit symbols.
Suitable for Due Fili Plus video door entry installations. Features BUS-powered operation, wall mounting, local landing call input, configurable line termination, and IP30-rated protection for indoor use.
Key Features
- Compact colour display gives users clear video entry feedback without a large wall unit.
- Hands-free format keeps call handling simple in everyday indoor use.
- Backlit touch symbols help the controls remain easy to identify.
- BUS-powered design reduces the need for separate local supply wiring.
- Wall-mounted bracket compatibility supports tidy installation across common box types.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Display:
- 4.3 in LCD, 16:9
- Display Resolution:
- 480 x 272 pixels
- Video Signal Level:
- Minimum -20 dBm on bus for reception
- Power Supply:
- BUS terminals 1 and 2, nominal 28 V DC
- Current Draw:
- 17 mA standby; 280 mA maximum
- Protection Rating:
- IP30
- Operating Temperature:
- -5 °C to +40 °C
- Ambient Class:
- Class A1
- Mounting:
- Wall-mounted with metal bracket
- Colour:
- White
- Device Type:
- MONITOR
- Display Size:
- 4.3 INCH DISPLAY
- Power:
- POWER BY BUS CONTROLLER
- Series:
- DUE FILI+
- Solution:
- APARTMENT,RESIDENTIAL
- Technology:
- 2-WIRE
