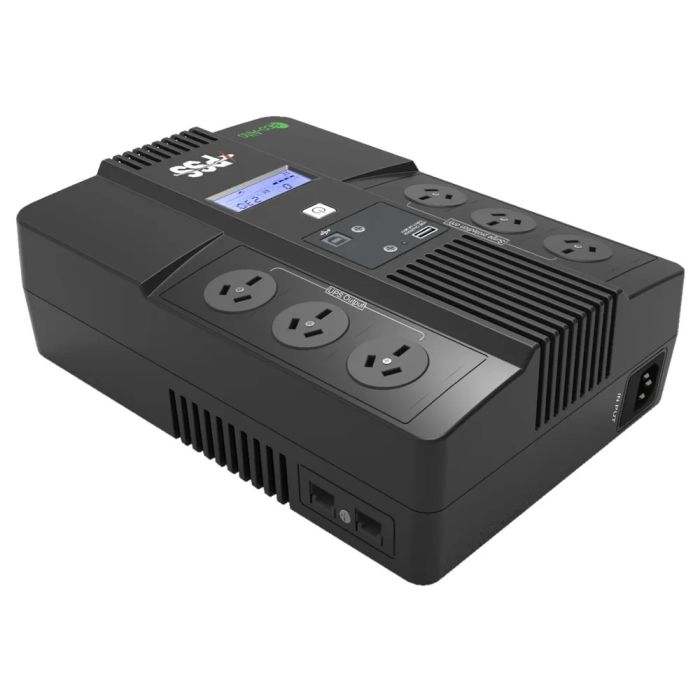

ECO800L Eco Series Battery Backup UPS - 800VA 480W
The ECO800L is an 800VA / 480W Eco Series UPS with LCD display, USB communication and sealed lead acid battery backup. It includes both UPS output sockets and surge-only sockets in the model specification.
It is useful where small business, CCTV, communications or point of sale devices need a modest UPS with local display feedback. Its compact horizontal form and runtime table make it easy to plan around common equipment loads.
Key Features
- Adds LCD status feedback to compact equipment backup installations.
- Supports both protected UPS outlets and separate surge-only outlets.
- Provides USB communication for simple monitoring where required.
- Helps bridge short power interruptions for small network and CCTV loads.
- Keeps battery backup practical for space-limited setups.
- Catalogue Family:
- UPS
- Capacity:
- 800VA / 480W
- Display:
- LCD
- UPS Output Sockets:
- 3 x AS/NZS 3112 Type I 10A
- Surge-Only Sockets:
- 3 x AS/NZS 3112 Type I 10A
- Battery Configuration:
- 1 x 12V 9Ah
- Charge Current:
- 2A max
- Communication:
- USB
- Software Supplied:
- Yes
- Dimensions (H X W X D):
- 90 x 270 x 190mm
- Weight:
- 5.2kg
- Input Voltage:
- 230Vac
- AVR Voltage Range:
- 162-290Vac
- Waveform:
- Modified/simulated sine wave
- Transfer Time:
- Typical 2-6ms
- Surge Protection:
- 125 Joules / 4500A
- Operating Temperature:
- 0-40 deg C
- Product Type:
- UPS
