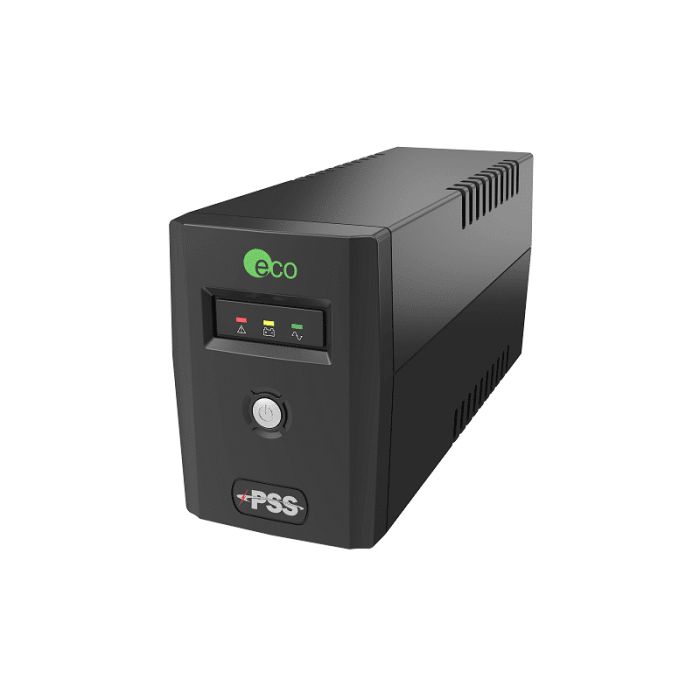

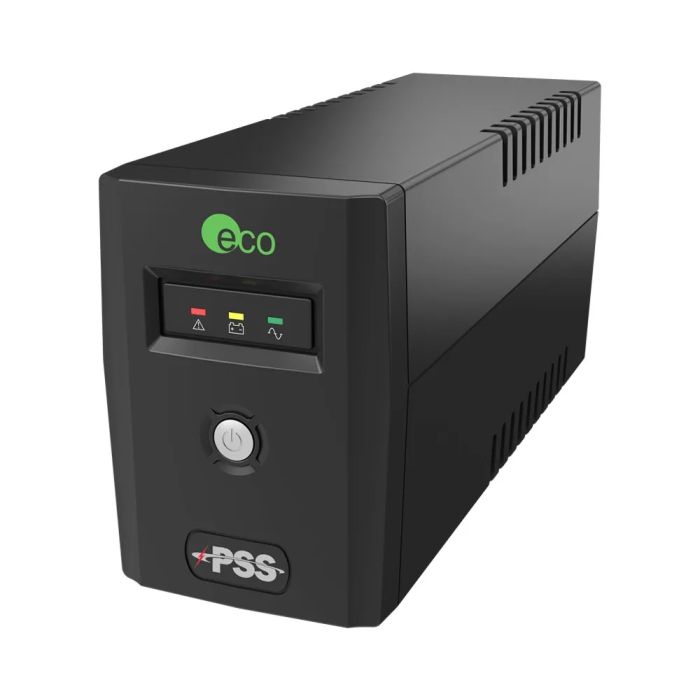

ECO600 Eco Series Battery Backup UPS - 600VA 360W
The ECO600 is a compact Eco Series battery backup UPS rated at 600VA / 360W. It provides a simple LED-based backup and surge protection option using a sealed lead acid battery and automatic restart support.
It is suited to smaller protected loads such as compact CCTV, modem, NBN, computer or point of sale equipment. The small footprint and two UPS outlets make it useful where essential devices need short-duration backup without a larger UPS cabinet.
Key Features
- Gives smaller equipment loads a compact battery backup option.
- Supports basic mains-failure protection with simple LED indication.
- Fits small CCTV, network or office device backup requirements.
- Keeps the setup straightforward with two protected UPS outlets.
- Provides runtime guidance for common low-power loads.
- Catalogue Family:
- UPS
- Capacity:
- 600VA / 360W
- Display:
- LED
- UPS Output Sockets:
- 2 x AS/NZS 3112 Type I 10A
- Battery Configuration:
- 1 x 12V 7Ah
- Charge Current:
- 1.2A max
- Communication:
- Nil
- Dimensions (H X W X D):
- 140 x 95 x 300mm
- Weight:
- 4kg
- Input Voltage:
- 230Vac
- AVR Voltage Range:
- 162-290Vac
- Waveform:
- Modified/simulated sine wave
- Transfer Time:
- Typical 2-6ms
- Surge Protection:
- 125 Joules / 4500A
- Operating Temperature:
- 0-40 deg C
- Product Type:
- UPS
