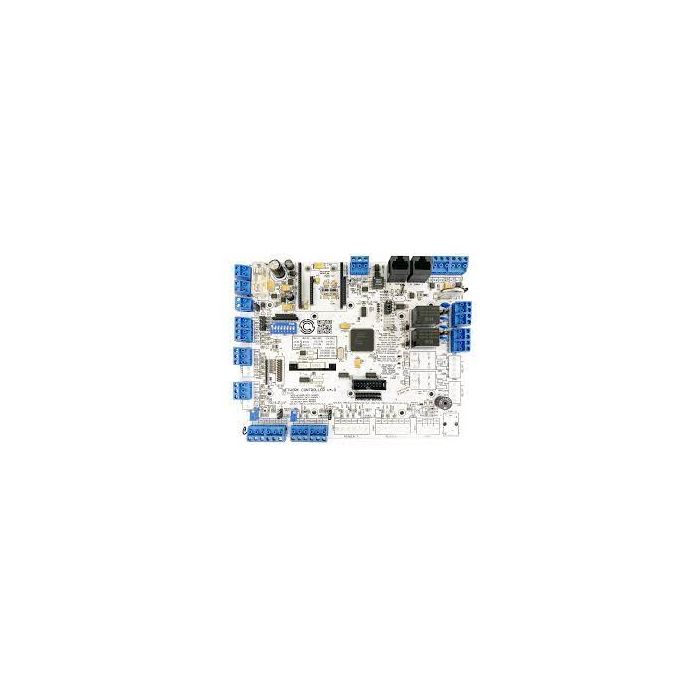

CSEVO2 CS Evolution EVO2 2 Door Controller PCB
The CSEVO2 is a CS Technologies Evolution EVO2 two-door controller PCB for building access control and security systems. The Evolution platform supports door, lift and alarm control with RS485 or TCP/IP connection methods.
It suits smaller access-control installations that need two reader-controlled doors with management through Evolution software. It supports two readers, 2,000 users per controller, 5,000 events and 250 alarms.
Key Features
- Two-reader controller format suits compact access-control projects.
- RS485 or TCP/IP connection options support flexible system communication.
- Supports door, lift and alarm control within the Evolution platform.
- Supports up to 2,000 users, 5,000 events and 250 alarms.
- Supports common reader technologies for access-control applications.
- Catalogue Family:
- ACCESS CONTROL
- Model:
- EVO2 / CSEVO2
- Product Type:
- Access Control
- Controllers:
- Unlimited 128 per location
- Locations:
- Unlimited
- Connection Method:
- RS485 or TCP/IP
- Reader Types:
- Wiegand; Silkey; Presco; TTL
- Power:
- 12 V DC 500 mA
- Readers:
- 2
- Users:
- 2,000 per controller
- Events:
- 5,000
- Alarms:
- 250 per controller
- Lift Control:
- No
