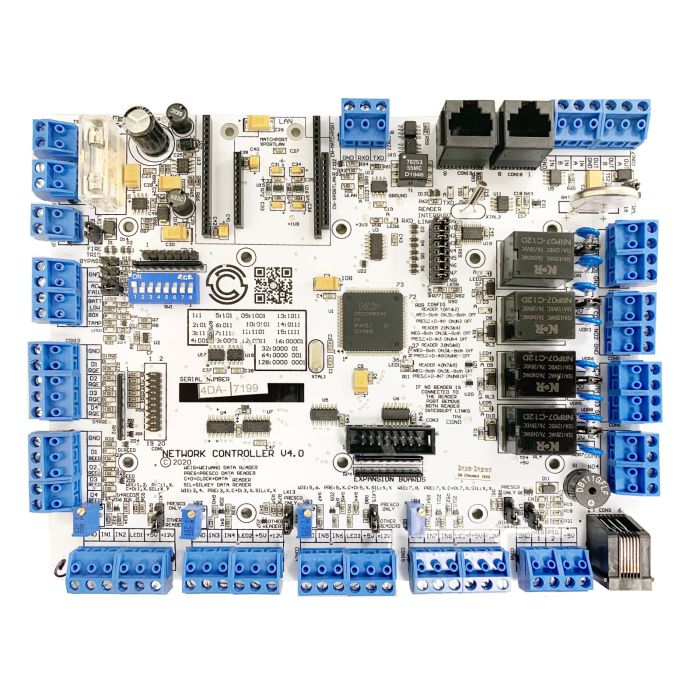

CSEV04 CS Evolution EVO4 4 Door Controller PCB
The CSEV04 is a CS Technologies Evolution EVO4 controller board for access control and security applications. It features four universal reader ports, four door REX inputs, four door REED inputs, four universal relay outputs, and support for expansion boards.
It is designed for four-door access control installations with RS485 or TCP/IP communication options and support for multiple reader formats. The controller supports up to 128 controllers per location and up to 40,000 users per controller.
Key Features
- Four reader ports support multi-door access-control deployments.
- Integrated REX and REED inputs help monitor door request and status functions.
- Universal relay outputs support control of locks, alarms, lighting and external devices.
- Expansion-board support allows additional inputs, buttons, switches and relays.
- Australian-made Evolution platform for access-control applications.
- Catalogue Family:
- ACCESS CONTROL
- Model:
- EVO4 / CSEV04
- Product Type:
- Access Control
- Controllers:
- 128 per location
- Locations:
- Unlimited
- Connection Types:
- RS485 or TCP/IP
- Reader Ports:
- 4 universal reader ports
- Reader Types:
- Wiegand; OSDP; Presco; iButton; Clock + Data
- Power:
- 12 V DC 500 mA
- Users:
- 40,000 per controller
- Events:
- 12,500
- Alarms:
- 250 per controller
- Lift Control:
- Yes
