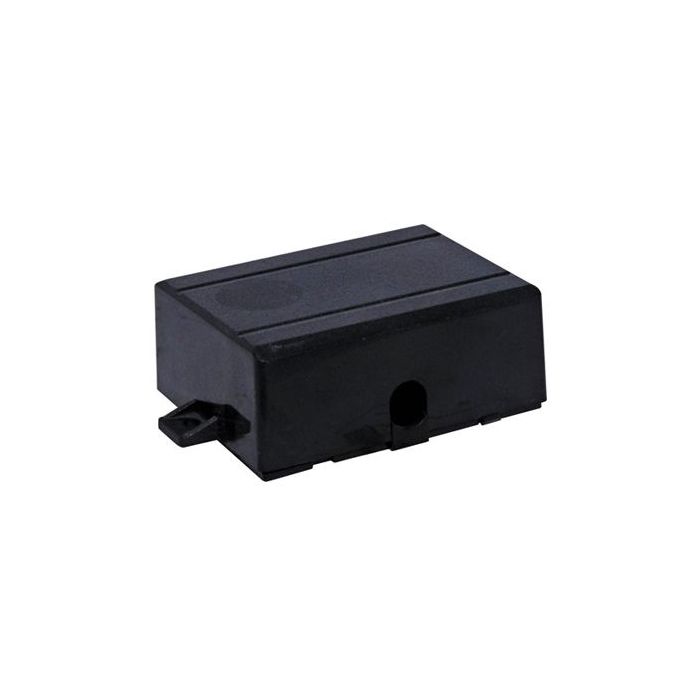

CS4606 CS Network USB And RS232 To RS485 Communications Converter
The CS4606 is a CS Network communications converter used to connect a PC or serial connection to an RS485 access-control network. USB to RS485 and RS232 to RS485 connection methods for CS controller communication.
It suits service setup and system programming where the Evolution software needs a bridge into the RS485 controller network. External 12 V DC power is not required for USB connection and is only required for RS232 operation when not using USB.
Key Features
- Provides a practical communications bridge for RS485 controller networks.
- USB and RS232 connection options support different commissioning setups.
- On-board LEDs give visible power receive and transmit status feedback.
- Manual wiring diagrams help installers connect to CS controllers correctly.
- Catalogue Family:
- ACCESS CONTROL
- Product Type:
- Access Control
- System:
- CS Technologies Evolution / CS controller network
- USB Connection:
- USB to RS485
- Serial Connection:
- RS232 to RS485
- Power Via USB:
- External power not required when using USB port
- Rs232 Power:
- 12 V DC required when not using USB connection
- Indicators:
- Power LED; RX LED; TX LED
- Recommended Cable Type:
- CAT5
