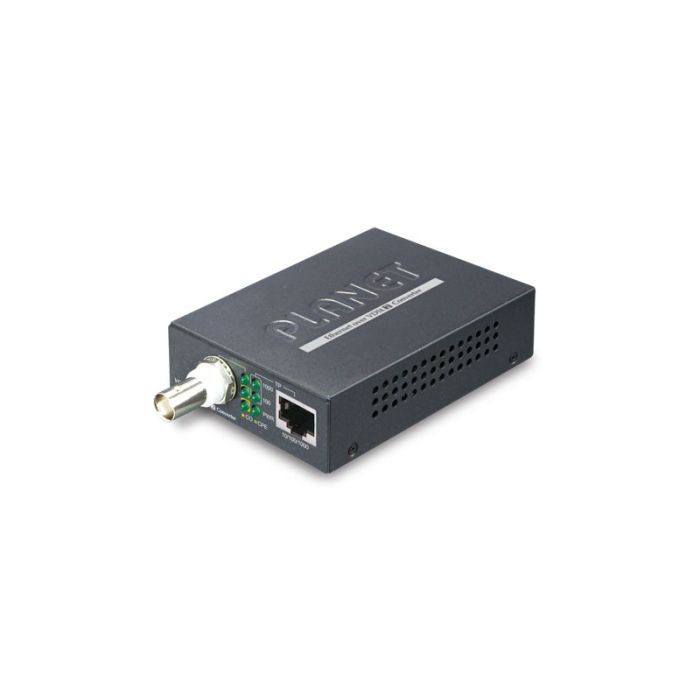

VC-232G PLANET 1-Port Gigabit Ethernet over Coaxial Converter
The VC-232G is a PLANET Gigabit Ethernet over coaxial converter with one 10/100/1000BASE-T RJ45 port and one BNC VDSL connection for RG59/RG6 coaxial cabling. ITU-T G.993.1/G.993.2 VDSL2 support, CO/CPE mode selection, and DC 5 V external power.
It is intended for extending IP network services over existing coaxial cable, including surveillance upgrades where analogue camera cabling may already be present. Point-to-point pair operation helps convert coaxial infrastructure into Ethernet reach while retaining a compact metal converter format.
Key Features
- Turns existing coaxial runs into a practical path for Ethernet extension.
- Supports surveillance and building retrofit projects where recabling is costly.
- CO/CPE mode selection gives installers a clear point-to-point deployment method.
- Plug-and-play bridge operation keeps commissioning straightforward.
- Compact converter format fits small endpoint locations and media-converter chassis planning.
- Catalogue Family:
- CABLE
- Ethernet Port:
- 1 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X
- Vdsl Interface:
- BNC connection for RG-6/U cable, less than 12 ohms/1000 ft
- Vdsl Compliance:
- ITU-T G.993.1 VDSL; ITU-T G.993.2 VDSL2 Profile 17a/30a
- Power Input:
- DC 5 V, 2 A external power
- Dimensions:
- 70 x 97 x 26 mm
- Weight:
- 185 g
- Operating Temperature:
- 0 to 50 degrees C
- Operating Humidity:
- 5 to 95%, non-condensing
- Product Type:
- Cable
