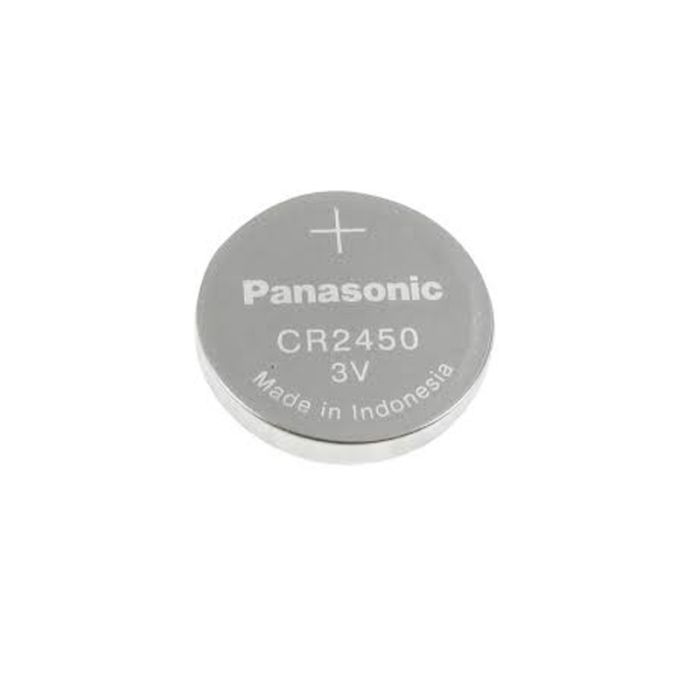

CR2450 3V Lithium Coin Cell - 560 mAh
The CR2450 is a 3V lithium coin cell battery with a nominal capacity of 560 mAh. It features a lithium chemistry, a 24.5 mm maximum diameter, and a 5.0 mm height.
Suitable for compact electronic devices, the battery provides a 3V power source with defined electrical and dimensional characteristics.
Key Features
- 3V lithium coin cell battery.
- 560 mAh nominal capacity.
- 0.4 mA continuous drain rating.
- 24.5 mm diameter and 5.0 mm height.
- Operating temperature range of -40 DegC to +105 DegC.
- Catalogue Family:
- BATTERY
- Battery Type:
- CR coin-type lithium battery
- Nominal Voltage:
- 3V
- Nominal Capacity:
- 560 mAh
- Continuous Drain:
- 0.4 mA
- Diameter:
- 24.5 mm max
- Height:
- 5.0 mm
- Weight:
- Approx. 6.2 g
- Operating Temperature:
- -40°C to +105°C
- Product Type:
- Battery
