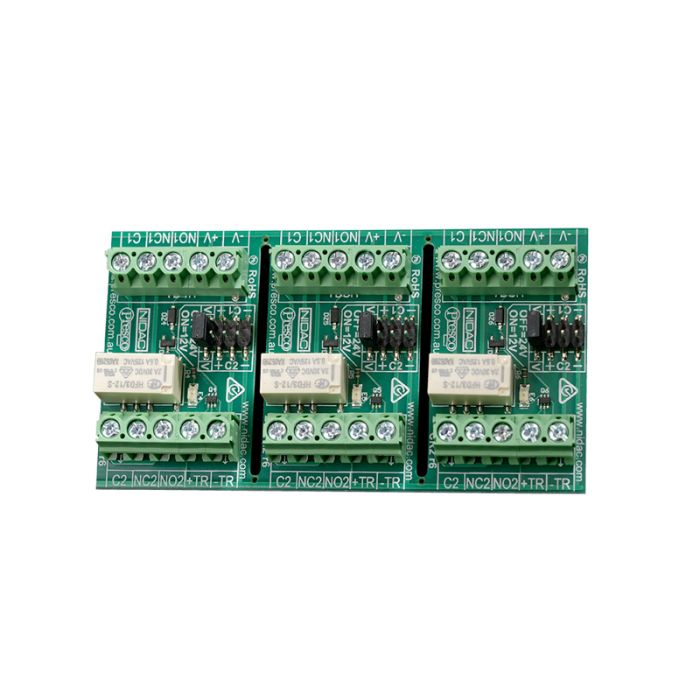

CR2-3 Nidac CR2 Three Relay DPDT Control Relay Strip
The CR2-3 is a Nidac CR2 three relay DPDT control relay strip based on the CR2 two-pole double-throw relay platform. It supports 12 or 24 V DC control applications with 2 A rated contacts, low trigger current, and LED operation indication.
The relay strip is designed for access control and low-voltage automation applications, including door strike control, dialler interfacing, strobe driving, voltage level shifting, and other multi-relay control functions.
Key Features
- DPDT relay behaviour supports flexible low-voltage control switching
- 12 or 24 V DC operation suits common access control supply environments
- LED indication helps installers confirm relay activity during testing
- Low trigger current supports use with compatible control outputs
- Strip format supports multi-relay installations while retaining CR2 relay functionality
- Catalogue Family:
- ACCESSORIES & OTHERS
- Product Type:
- Accessories & Others
- Operating Voltage:
- 12 or 24 V DC
- Relay Contacts:
- 2 pole changeover contacts
- Maximum Switch Current:
- 2 A at 30 V DC
- Trigger Current:
- 1.2 mA input current
- Life Expectancy:
- 100000 operations at full load
- Applications:
- Door strike control, dialler interface, SIU interface, voltage level shifting and access control
