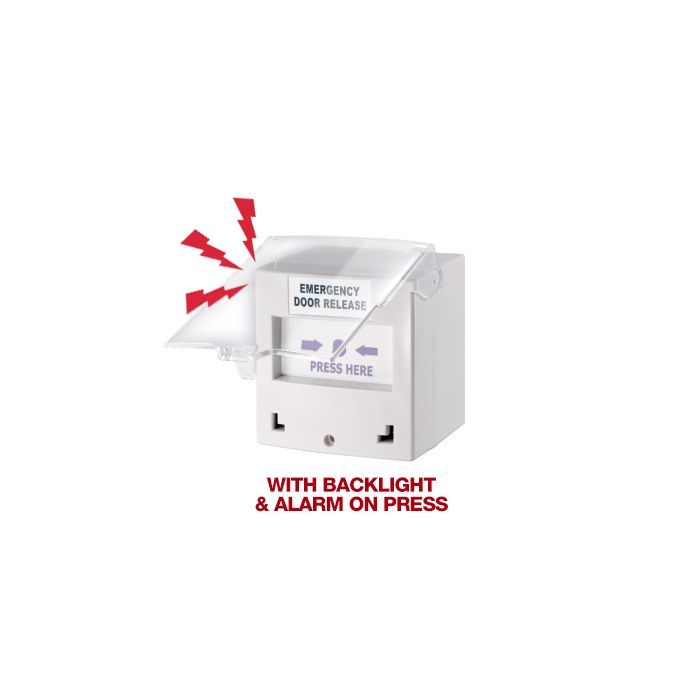

CP-32WBZ-LB GEM White Backlit Buzzer Resettable Call Point
CP-32WBZ-LB is a white GEM resettable call point with blue backlight and a built-in buzzer. It operates on 12/24 V DC and combines double pole contacts with an 80 dB buzzer that activates when the plastic element is pressed.
The white case, illuminated face and audible local alert make it suitable where a resettable call point needs to remain easy to see and maintain. Its clear cover and included resettable key support routine operation and servicing in commercial alarm or access-control environments.
Key Features
- Pairs resettable operation with blue backlight for improved point visibility.
- Provides local audible indication through an integrated 80 dB buzzer.
- Supports 12/24 V DC installations with double pole contacts.
- Uses a white case where that finish is required for the site.
- Reduces the need for replacement glass after call point activation.
- Catalogue Family:
- BREAK GLASS
- Product Model:
- CP-32WBZ-LB
- Series:
- CP-32BZ-LB resettable call point
- Case Colour:
- White
- Operating Voltage:
- 12/24 V DC
- Backlight:
- Blue
- Built-In Buzzer:
- 80 dB
- Buzzer Trigger:
- Press plastic element
- Contact Resistance:
- 100 mOhm
- Dimensions:
- 87 mm x 91 mm x 53 mm with clear plastic cover
- Included Item:
- Resettable key
- Product Type:
- Break Glass
