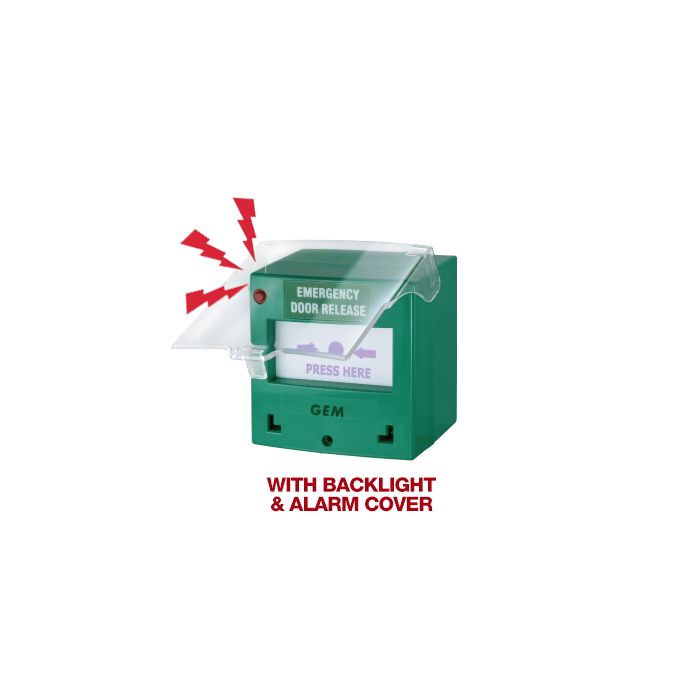

CP-32GBZ-LB-ALM GEM Green Backlit Alarm Cover Resettable Call Point
CP-32GBZ-LB-ALM is a green GEM alarmed resettable call point with protective alarm cover and blue backlight. It operates on 12/24 V DC and combines double pole contacts with an 80 dB buzzer that sounds when the protective cover is opened.
The alarm cover is designed to discourage accidental misuse or tampering while keeping the emergency function accessible. This makes the call point useful in public and commercial areas where visibility, resettable operation and a local warning before activation are important.
Key Features
- Warns locally when the protective cover is opened before operation.
- Improves visibility in darker areas through blue backlight illumination.
- Uses a resettable element to avoid broken-glass replacement after activation.
- Supports powered 12/24 V DC installations with double pole switching.
- Adds a protective cover for locations exposed to misuse or accidental contact.
- Catalogue Family:
- BREAK GLASS
- Product Model:
- CP-32GBZ-LB-ALM
- Series:
- CP-32BZ-LB-ALM alarmed resettable call point
- Case Colour:
- Green
- Operating Voltage:
- 12/24 V DC
- Backlight:
- Blue
- Built-In Buzzer:
- 80 dB
- Buzzer Trigger:
- Open cover
- Ratings:
- Up to 5 A at 125/250 V AC
- Dimensions:
- 87 mm x 91 mm x 53 mm with clear plastic cover
- Included Item:
- Resettable key
- Product Type:
- Break Glass
