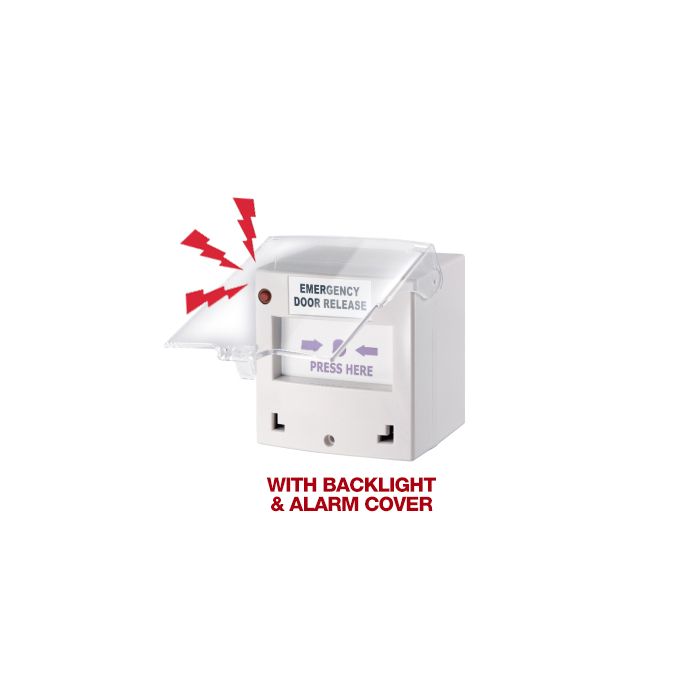

CP-32WBZ-LB-ALM GEM White Backlit Alarm Cover Resettable Call Point
CP-32WBZ-LB-ALM is a white GEM alarmed resettable call point with protective cover, blue backlight and built-in buzzer. It operates on 12/24 V DC and uses double pole contacts with an 80 dB buzzer that sounds when the cover is opened.
This variant is suited to environments where a visible resettable call point needs an extra local warning before operation. The protective cover helps discourage casual misuse while the resettable element and key support ongoing maintenance after authorised activation.
Key Features
- Sounds an 80 dB warning when the protective cover is opened.
- Improves visibility with blue backlight in low-light areas.
- Uses a resettable operating element for repeatable service after activation.
- Supports powered 12/24 V DC wiring with double pole contacts.
- Provides a white alarm-cover option for coordinated site finishes.
- Catalogue Family:
- BREAK GLASS
- Product Model:
- CP-32WBZ-LB-ALM
- Series:
- CP-32BZ-LB-ALM alarmed resettable call point
- Case Colour:
- White
- Operating Voltage:
- 12/24 V DC
- Backlight:
- Blue
- Built-In Buzzer:
- 80 dB
- Buzzer Trigger:
- Open cover
- Ratings:
- Up to 5 A at 125/250 V AC
- Dimensions:
- 87 mm x 91 mm x 53 mm with clear plastic cover
- Included Item:
- Resettable key
- Product Type:
- Break Glass
