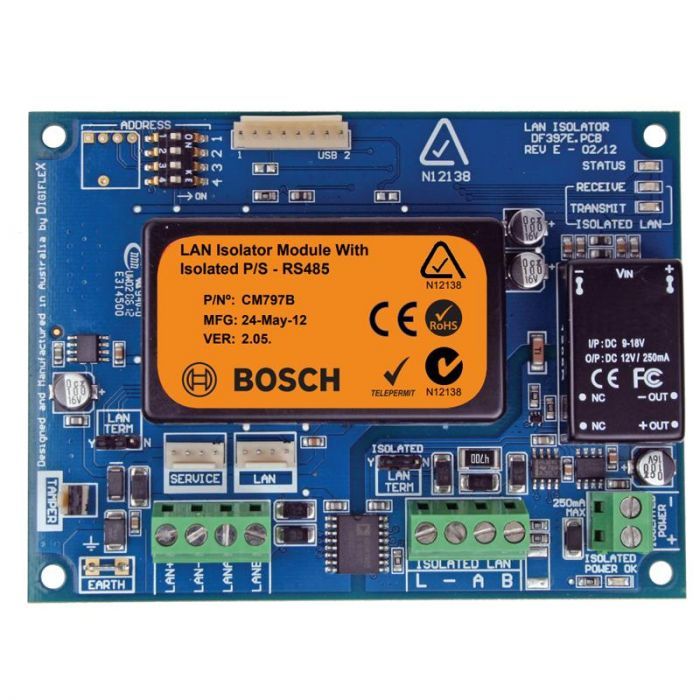

CM797B LAN Isolator Module with Isolated Power Supply
The CM797B is a Bosch RS485 LAN isolator module with isolated power supply. With 2.5 kV electrical isolation between LAN segments or between the LAN and other modules, LAN signal regeneration, and an isolated 12 V supply for keypads or LAN prox readers.
It is useful where LAN cabling crosses between buildings, reaches external wall-mounted devices or exceeds standard cable-run expectations. Reduce earth loop issues and supports surge-immunity planning by electrically separating LAN sections.
Key Features
- Provides 2.5 kV isolation between LAN and isolated LAN sections
- Regenerates LAN signalling to support longer RS485 network layouts
- Integrated isolated output can power external keypads or LAN readers
- LED indicators make power and LAN traffic status visible during service
- Useful for multi-building or potentially noisy cable-run applications
- Catalogue Family:
- POWER SUPPLY
- Product Type:
- Power Supply
- Electrical Isolation:
- 2.5 kV between LAN and isolated LAN
- Operating Voltage:
- 10.0 V DC to 14.5 V DC at 100 mA; 340 mA when ISO power is fully loaded
- Isolated Power Output:
- 13.8 V DC at 250 mA maximum
- Dimensions:
- 74 mm x 23 mm x 116 mm
- Supported Panels:
- Solution 16i, Solution 144, Solution E Series
- Operating Environment:
- -30 deg C to 55 deg C; 5% to 85% RH at 30 deg C non-condensing
